Line Impedance Stabilization Network (LISN)

LI-1100

150 kHz - 30 MHz

LI-1100

Description

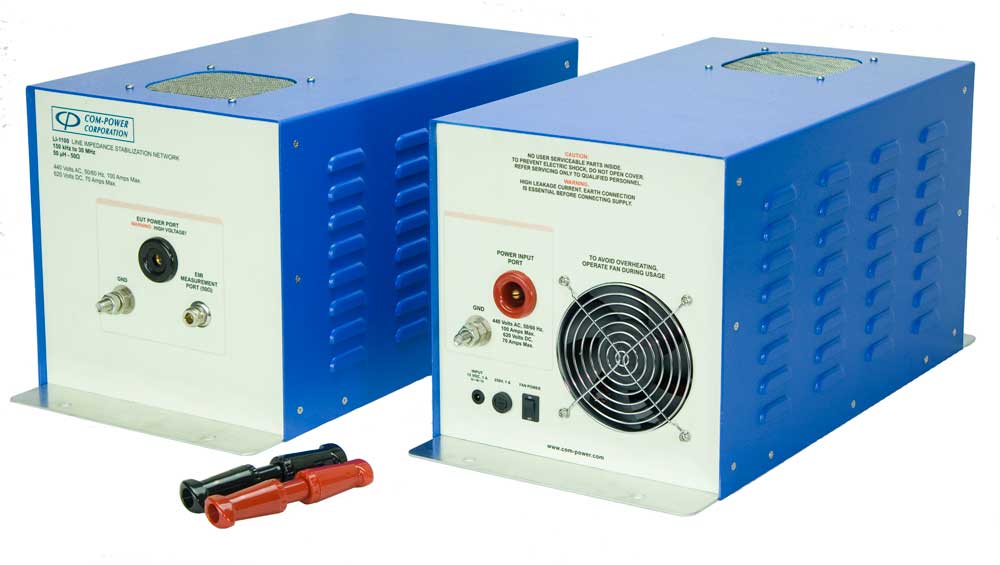

The LI-1100 Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-1100 is compliant with both CISPR 16-1-2 and ANSI C63.4. The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-1100 includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-1100 pair can be used to accommodate 3-phase power systems (Wye or Delta configurations). The LI-1100 is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-1100 is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current. Use of a Transient Limiter for impedance matching, reduction of out-of-band emissions and transient protection for your measurement instrument is highly recommended and available from Com- Power. All Com-Power LISNs are individually calibrated in compliance with the relevant requirements of CISPR 16-1-2 and ANSI C63.4. Impedance, Phase, Isolation, and Insertion Loss data is supplied with each unit, along with the calibration certificate.

  • Frequency range of 150 kHz to 30 MHz
  • 100 Amp(AC) (forced air cooling)
  • Fully compliant with CISPR 16-1-2 / ANSI C63.4
  • “Air-core” inductors to prevent saturation
  • Individual Calibration Included
  • Three-Year Warranty
  • Product Name: Line Impedance Stabilization Network (LISN)
  • Specification: CISPR 16-1-2 / ANSI C63.4
  • Application: Power Line conducted emission tests
  • Frequency Range: 150KHz - 30 MHz
  • RF Connector: 50 Ohms N-type (female)
  • Current Rating: 100 Ampere AC, 70 Ampere DC
  • Voltage Rating: 440 VAC (Line to Ground), 620 VDC
  • Inductors: 50 microhenry (air-core)
  • Mains & EUT Connections: Superior Electric SUPERCON shrouded connectors
  • Dimensions (each network): 10 x 10 x 21 inches / 25.4 x 25.4 x 53.3 cm
  • Weight (each network): 17 lbs / 7.7 kg
  • Insertion Loss: <0.5 dB (150 kHz - 30 MHz)
  • Isolation: > 40 dB (150 kHz - 30 MHz)
  • ImpedancePhase
