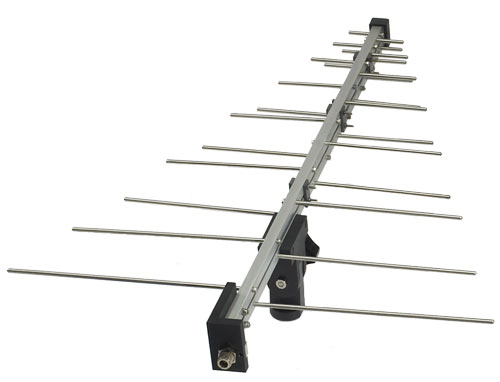

Compact Log Periodic Antenna

ALC-100

300 MHz to 1 GHz

Compact Log Periodic Antenna

Description

Com-Power ALC-100 log period antenna is lightweight and compact for easy transport and storage. It has frequency range of 300 MHz to 1 GHz. It is ideal for off site EMC testing or testing inside a small EMC chambers. It is part of the ANK series antenna kits.

  • Frequency Range: 300 MHz to 1 GHz (useable from 200 MHz)
  • Transmit & Receive Capabilities emissions/immunity applications
  • Individual Calibration Included per ANSI C63.5 with NIST traceability
  • Three-year Standard Warranty
  • Frequency Range: 300 MHz to 1 GHz (useable from 200 MHz)
  • Polarization: Linear
  • Nominal Impedance: 50 Ohm
  • Power Handling: 50 Watts Continuous
  • Connector: N-type(female)
  • Specifications: FCC, CISPR, EN, ETSI, FAA, Mil-Std, Automotive, etc.
  • Dimensions (L x W x H): 25.5 x 21.5 x 5.125 [64.8 x 54.6 x 13 cm]
  • Weight: 2 lbs. [0.9 kg]
