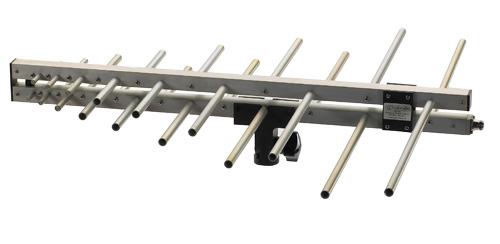

Log Periodic Antenna

ALP-100

200 - 1000 MHz

Power Log Periodic Antenna

Description

Com-Power ALP-100 log periodic antenna is lightweight, compact and rugged. It can be utilized as a receiving antenna for radiated emissions tests, or as a transmitting antenna for radiated immunity tests. It has low VSWR and high power handling capabilities. It is suitable for use in any normal test environment, such as an absorber-lined chamber or outdoors on an open area test site. It operates over the frequency range of 200 MHz to 1 GHz.

  • Broadband 200 MHz to 1 GHz
  • Transmitting and Receiving Applications
  • Individual Calibration
  • Three Year Warranty
  • Frequency Range: 200 MHz to 1 GHz
  • Power (CW): 500 Watts
  • Average Gain: 6 dBi
  • Average VSWR: 1.2: 1
  • Polarization: Linear
  • Impedance: 50 Ω
  • Connector: N type (f)
  • Width: 29 in / 75 cm
  • Length: 29 in / 75 cm
  • Weight: 5 lb / 2.2 kg
