coupling decoupling network

CDN for USB Type B

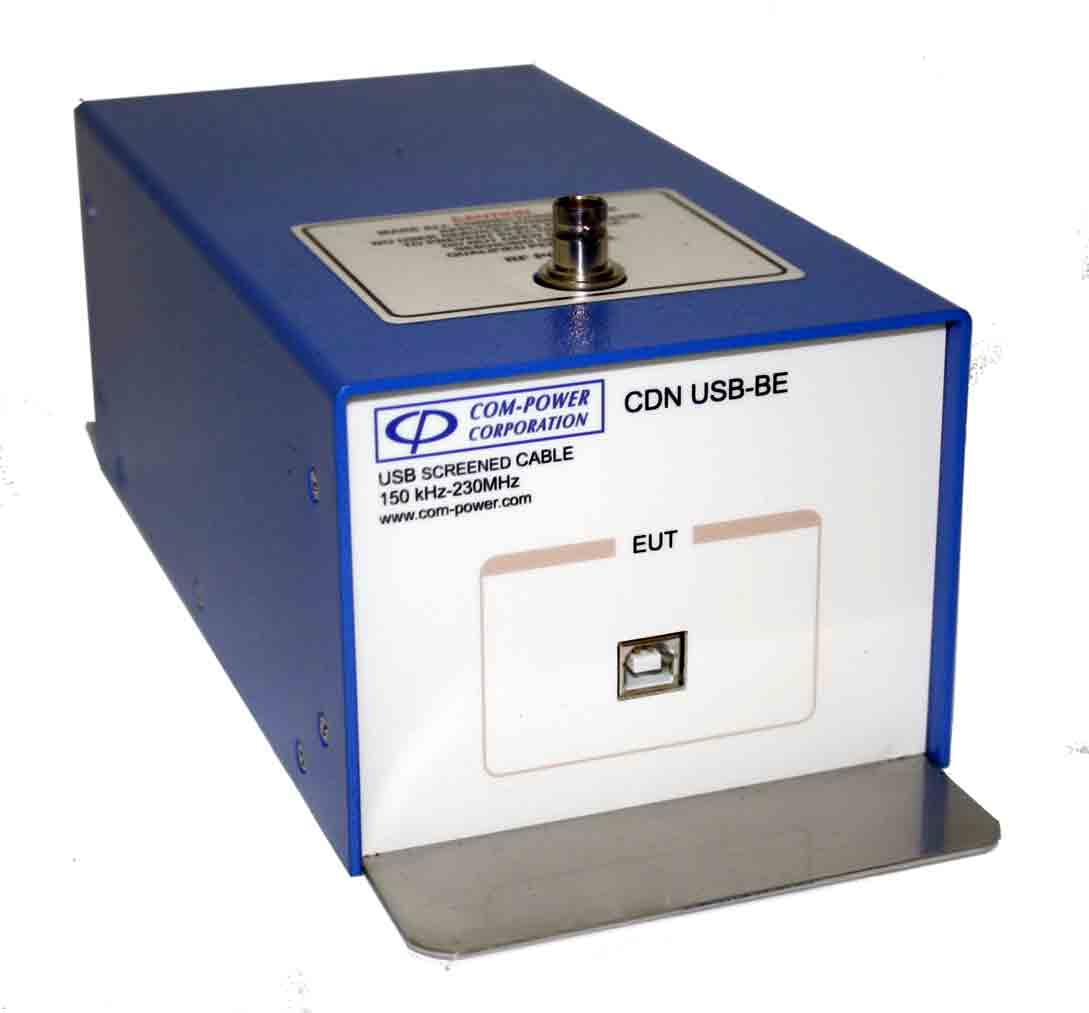

Used for equipment with USB Type B cable for communication. It has a USB type B on the EUT side and USB Type A on the AE side and it can handle up to 1 Amp of current. The RF disturbance signal coupling port is female BNC and can handle up to 40V of RF Input Voltage. It designed just for testing product for conducted immunity per IEC/EN 61000-4-6. The CDN-USB-BE is designed for testing products that The bottom surface of the CDN is not painted for easy and effective grounding. The Com-Power CDN-USB-BE fully complies with the requirements contained in the IEC 61000-4-6 and CISPR 16-1-2. Com-Power CDNs can be purchased separately or as part of the CIS series conducted immunity test system, the pre-packaged solution that includes an ACS series power amplifier and all accessories required for the test. Com-Power CDN-USB-BE is individually calibrated.

  • Frequency range 150 MHz to 230 MHz
  • Meets CISPR 16-1-2 requirements
  • USB cables with type B connector
  • Individual calibration
  • Three Year Warranty
  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC / EN 61000-4-6
  • Application: USB cable with type B connector
  • Frequency Range: 150 kHz to 230 MHz
  • RF Input Voltage: 40 V (Max)
  • RF Input Connector: 50 Ω BNC (Female)
  • Voltage Rating: 30 V AC / 30 V DC (Line to Ground)
  • Current Rating: 1 Amp (Max)
  • AE and EUT Connections: EUT: Type B, AE: Type A
  • Common Mode Impedance:
  • 150 kHz - 26 MHz: 150Ω ± 20Ω
  • 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
  • 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
  • Voltage Division Factor: 9.5 dB +2 / -1
  • Decoupling of Common Mode Disturbance: ≥ 50dB (EUT/AE)
  • Dimensions: 8.5 x 4.5 x 3.5 inches or 21.5 x 11.4 x 8.8 cm
  • Weight: 2 lbs. or 0.9 kg
  • Accessories Available from Com-Power for setting test levels and running the test:
  • ADA-USB-BE shorting adapters
  • ADA-515-2 150 Ω to 50 Ω adapters
  • TEP-050 50 Ω Terminator
  • ATTN-6-100W Power Attenuator
  • DCU-300-100W Directional Coupler
  • ASC series Power Amplifiers
