Bulk Current Injection Probe
Coming Soon

CLCI-400

10 KHz to 400 MHz

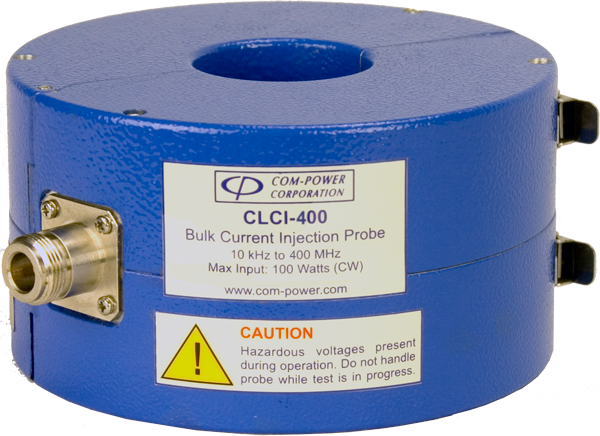

CLCI-400 Bulk Injection Current Probe

Coming Soon!

The CLCI-400 Bulk Current Injection Probe is part of ComPower's extensive line of radio frequency conducted immunity test equipment and calibration accessories; geared specifically to comply with the requirements contained in RTA/DO-160F, Mil-Std-461.
The CLCI-400 incorporates split-core ferrites into its rugged, circular enclosure, and is hinged; thereby allowing the probe to be opened on one side in order to easily place the wire, cable(s) or cable bundle(s) to be tested into the probe window, making the CLCI-400 much more convenient to use than other non-split core probes
The efficiency of the CLCI-400 probe enables it to achieve test levels up to 10 Vrms across its frequency band with less than 100 watts forward power. The probe can handle up to 100 amps "window current" on its secondary, and up to 100 watts RF input power to its primary. An RF Current probe is typically used in conjunction with spectrum analyzer or EMI receiver, which measure magnitude quantities in terms of true rms voltage. The Transfer Impedance conversion factor, which is expressed in terms of dB over 1Ω, converts the voltage quantity into a current quantity, expressed in terms of dB over 1 uA.


  • Frequency Range: 10 kHz to 400 MHz
  • Complies with RTCA/DO-160, Mil-Std-461
  • Current Injection & Monitoring capability
  • Three-year warranty

  • Frequency Range: 10 kHz to 400 MHz
  • Window Diameter: 1.575" (40 mm)
  • Outside Diameter: 5.75" (146 mm)
  • Width: 2.75" (70 mm)
  • Weight: 4.5 lbs. (2.04 kg)
  • Input Connector: Type-N (female)
  • Max. Input Power: 100 Watts (continuous)
  • Turns Ratio: 1:1
  • Max. Core Temperature: 110° C - 230° F
  • Accessories Available from Com-Power for setting test levels and running the test:
  • FCLC-100 Calibration Fixture
  • Term-50-100W Power Terminator ASC series Power Amplifiers
