LISN 50 Amps for CISPR 16 & ANSI C63.4

LI-150C

150 kHz to 30 MHzCISPR 16-1-2 / ANSI C63.450 microhenry / 50 Amps

line impedance stabilization network

LISN 50 Amps for CISPR 16 & ANSI C63.4

LI-150C

50μH inductor

Used for FCC, CISPR, EN, ANSI

Frequency 150 kHz – 30 MHz

  • This Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products.
  • The LI-150C is compliant with both CISPR 16-1-2 and ANSI C63.4.
  • The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results.

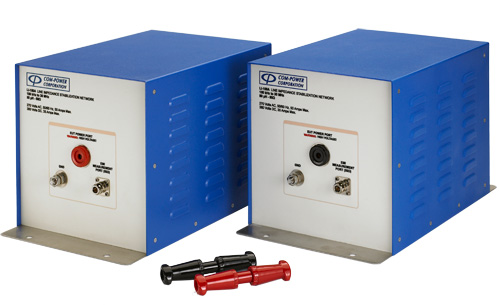

  • The LI-150C includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-150C pair can be used to accommodate 3-phase power systems (Wye or Delta configurations).
  • The LI-150C is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included.
  • This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-150C is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current.
  • Frequency range of 150 kHz to 30 MHz
  • Fully compliant with CISPR 16-1-2 / ANSI C63.4
  • “Air-core” inductors to prevent saturation
  • Individual Calibration Included
  • Three-Year Warranty
  • Specification: CISPR 16-1-2 / ANSI C63.4
  • Application: Power Line conducted emission tests
  • Frequency Range: 150KHz - 30 MHz
  • RF Connector: 50 Ohms N-type (female)
  • Current Rating: 50 Ampere AC, 35 Ampere DC
  • Voltage Rating: 270 VAC (Line to Ground), 380 VDC
  • Inductors: 50 microhenry (air-core)
  • Mains & EUT Connections: Superior Electric SUPERCON shrouded sockets
  • Dimensions (each network): 15 x 10 x 10 inches / 38 x 25.4 x 25.4 cm
  • Weight (each network): 14 lbs. / 6.3 kg
  • Insertion Loss: <0.5 dB (150 kHz - 30 MHz)
  • Isolation: > 40 dB (150 kHz - 30 MHz)
