The LISNs are intended for EMI conducted emissions testing. The LISN model LI-325 is placed between the
power source and the EUT (Equipment
Under Test) to stabilize line impedance,
provide a 50 ohm RF connection, and
block unwanted RF noise from the
external power source. The LI-325 uses air coils in the current path in
order to avoid saturation due to high current. This model can handle up to 25 A of current. It was designed to test products according to FAA DO-160 and Mil-std 461 standards.

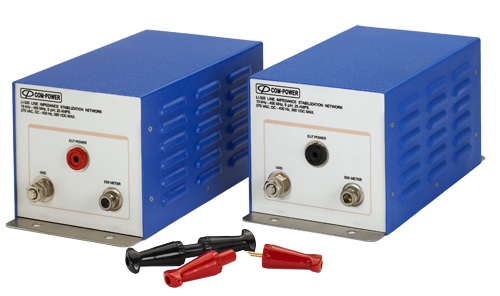

The model LI-325 has separate
enclosure for each LISN network and are shipped in pairs for single phase
testing. Additional networks can be purchased separately for testing
more than one phase. They have Superior Electric sockets for power connection.
pdf datasheet
|
|
Frequency: |
10 kHz - 400 MHz |
Application: |
FAA DO-160, Milstd 461 E & F |
Max Current (Amp): |
25 A |
Voltage: |
115/ 270 VAC, 380 VDC |
Inductor: |
5 µH |
Inductor type: |
Air Core |
Number of lines: |
2 |
Output impedance: |
50Ω |
Output Connector: |
N type (f) |
Power source frequency: |
DC-60 Hz |
Power Connector: |
Superior Electric |
Weight: |
5 lbs.(2.2 Kg) |
Size: |
13 x7.5 x 8 inches (33 x 19 x 20 cm) |
