Line Impedance Stabilization Network (LISN)

LI-400

10 kHz - 10 MHz

LI-400

Description

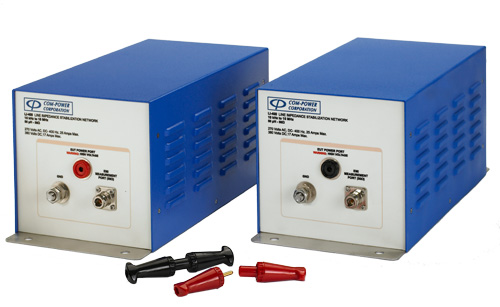

The LI-400 Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-400 is compliant with MIL-STD 461. The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results. The LI-400 includes one pair of, separately housed, single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-400 pair can be used to accommodate 3-phase power systems (Wye or Delta configurations). The LI-400 is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports. The matching color-coded plugs for connection to the mains and EUT wiring are included. This LISN uses air-core inductors to prevent saturation and permeability variation. The mounting plate of the LI-400 is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current. Use of a Transient Limiter for impedance matching, reduction of out-of-band emissions and transient protection for your measurement instrument is highly recommended and available from Com- Power. All Com-Power LISNs are individually calibrated in compliance with the relevant requirements of MIL-STD 461. Impedance and Insertion Loss data is supplied with each unit, along with the calibration certificate.

  • Frequency range of 10 kHz to 10 MHz
  • Fully compliant with MIL-STD 461
  • “Air-core” inductors to prevent saturation
  • Individual Calibration Included
  • Three-Year Warranty
  • Product Name: Line Impedance Stabilization Network (LISN)
  • Specification: MIL-STD 461
  • Application: Power Line conducted emission tests
  • Frequency Range: 10KHz - 10 MHz
  • RF Connector: 50 Ohms N-type (female)
  • Current Rating: 25 Ampere AC, 17 Ampere DC
  • Voltage Rating: 270 VAC (Line to Ground), 380 VDC
  • Inductors: 50 microhenry (air-core)
  • Mains & EUT Connections: Superior Electric SUPERCON Shrouded sockets
  • Dimensions (each network): 13 x 7 x 7 inches / 33 x 17.7 x 17.7 cm
  • Weight (each network): 14 lbs / 6.3 kg
  • ImpedanceLoss
