Antenna Mast

AM-400

Antenna Mast

Description

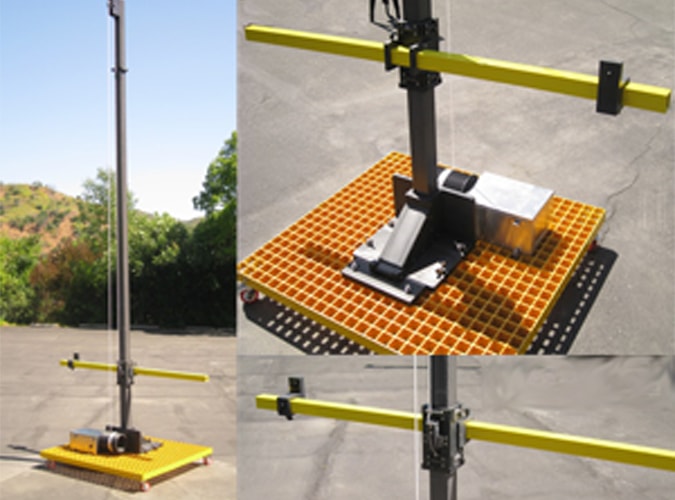

The AM-400 antenna mast is suitable for making EMC radiated emissions measurements in an open area test site or test chambers. It has the following features:
  • 1-4 meter antenna height standard
  • Motorized Electric height adjust
  • Low-stretch polyester rope suspension
  • Safety brake on the carriage to prevent antenna damage if the rope breaks
  • Two position remote switch to adjust the height
  • Low maintenance
  • The cross boom allows mounting most types of antennas using appropriate adapters
  • Made of mostly fiberglass non conductive materials
  • Four meter boom can be laid flat when not in use
  • Casters for easy moving
  • Strong, stable construction with wide fiberglass base
  • The boom can be laid flat when not in use
  • Easy assembly

  • 1-4 meter antenna height
  • Motorized
  • Remote switch
  • Safety brake
  • Min. Antenna Height: 1 meter
  • Max. Antenna Height: 4 meter
  • Load Capacity:15 lbs. (6.8 kg)
  • Motor: 1/20 HP AC Gear Motor
  • Power: Reversing Drum
  • Standard Extension Cable: 32.6 feet ( 10 meters)
  • Weight: 200 lbs. (90 kg)
