Preamplifier

PAL-010

100 Hz - 30 MHz

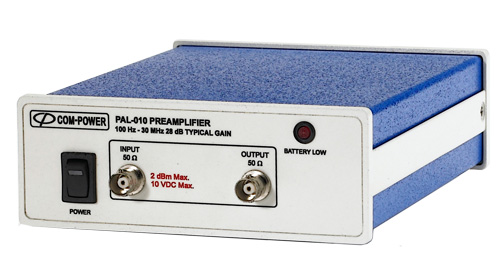

PAL-010

Description

Com-Power model PAL-010 Preamplifier is intended for improving measurement system sensitivity during EMC compliance testing.. It has a frequency range of 100 Hz to 30 MHz.. It has gain of 28 dB gain . Therefore, It amplifies the signals that were previously hidden below the receiver noise floor of the EMI receiver so that it can be seen and measured. The PAL-010 has a gain variation of ±2.5 dB for the entire frequency range to reduce measurement errors. It can be powered by the rechargeable NimH batteries included when an external power source is not available.

  • Broadband - 100 Hz - 30 MHz
  • High Gain: 28 dB
  • Flat Response: ± 2 dB
  • Individual Calibration
  • Three Year Warranty
  • Frequency: 100 Hz - 30 MHz
  • Application: EMI / EMC Measurements
  • Gain: 28 dB
  • Gain Flatness: ± 2.5 dB
  • Impedance I/O: 50 Ohms
  • Connector Type: BNC (f)
  • Power: 15 VDC, 500 mA
  • Battery Pack: 2 x 6 V NimH Battery packs
  • Size: (L x W x H) 7.5" x 5" x 3" (9 x13 x 7.6 cm)
  • Weight: 3.3 lbs. (1.5 kg)
  • Gain
