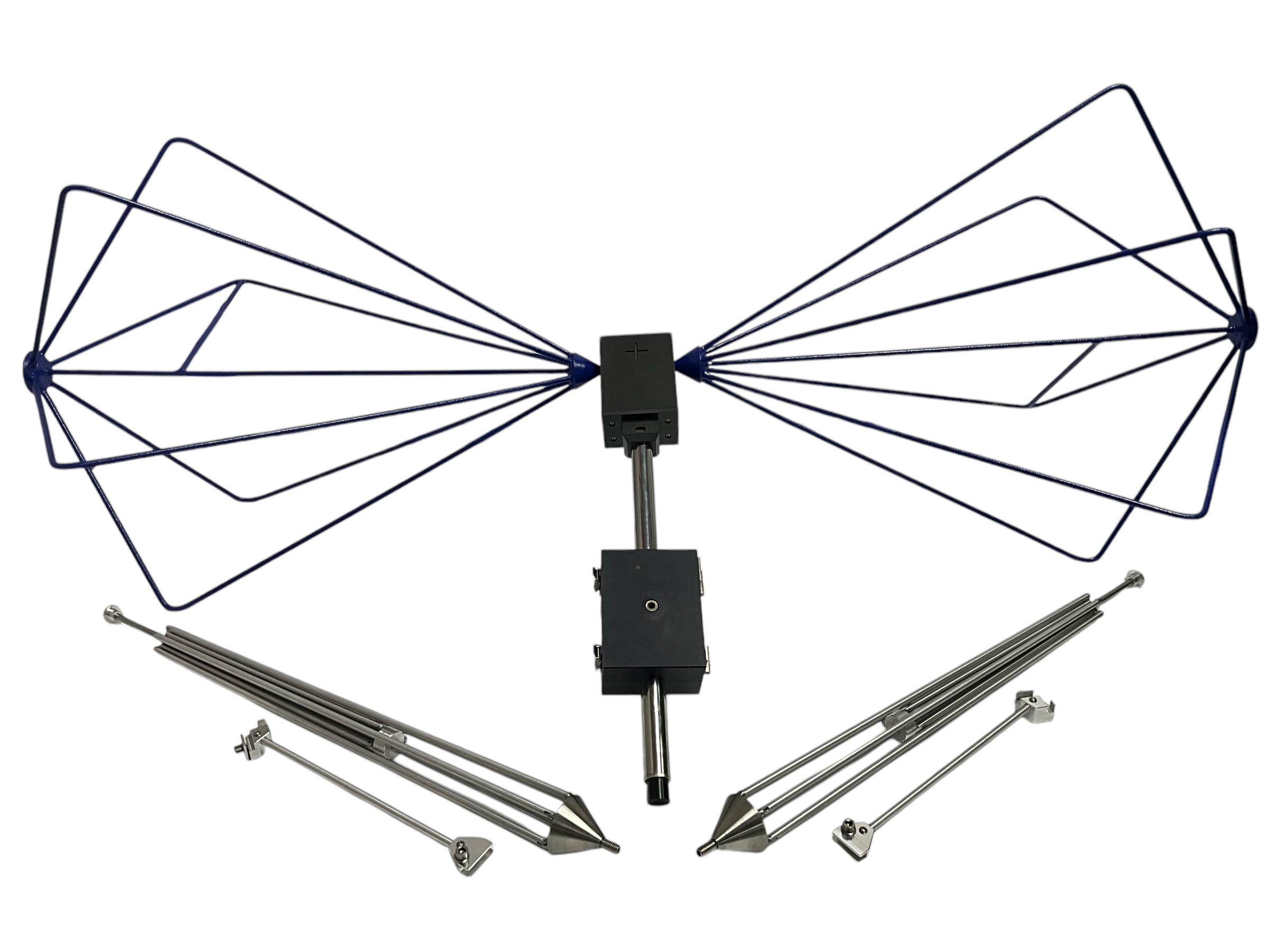

Broadband, linearly polarized Biconical Dipole Antenna

AB-300M

25 MHz to 300 MHz

Broadband, linearly polarized Biconical Dipole Antenna 25–300 MHz.

Broadband, linearly polarized Biconical Dipole Antenna

AB-300M Biconical Dipole Antenna Overview

• Broadband, linearly polarized Biconical Dipole Antenna operating over 25 MHz to 300 MHz.
• Can be used as a receiving antenna for EMI measurements or a transmitting antenna for immunity tests.
• Construction includes improved antenna design and excellent performance.
• Standard antenna elements are corrosion-resistant aluminum powder coated for durability.
• Optionally available collapsible elements made from high-quality, polished aluminum.
• Designed for use as an EMI test antenna for regulatory compliance measurements.
• Can be used with an optional 5 dB impedance-matching attenuator to comply with CISPR 16-1-4 minimum 10 dB return loss requirement.
• Can be used with an RF power amplifier to generate RF fields for radiated immunity testing.
• Can be used for Normalized Site Attenuation calibrations of Open Area Test Sites or Semi-Anechoic Chambers.
• Can also be used for test site comparisons, shielding effectiveness tests, field monitoring, site surveys, and other general purposes.
• Each antenna is individually calibrated per ANSI C63.5 or SAE ARP958 with NIST traceability.

Frequency Range : 25 MHz to 300 MHz

Complies with ±1 dB Antenna Symmetry/Balance
Requirements of ANSI C63.5 and CISPR 16-1-4

Transmit & Receive Capabilities
Available with Fixed or Collapsible Elements
Individual Calibration Included
Three-year Standard Warranty

  • Antenna Ordering Options

ORDER CODE                                             OPTION DESCRIPTION
AB-300M-F                                                   Fixed [standard] Elements
AB-300M-C                                                   Collapsible Elements
AB-300M-B                                                   Balun ONLY [no elements]
AB-300M-F-A5                                              Fixed Elements w/5 dB Attenuator
AB-300M-C-A5                                              Collapsible Elements w/5 dB Attenuator
AB-300M-B-A5                                              Balun ONLY w/5 dB Attenuator

  • Antenna Accessories

ITEM DESCRIPTION                                                  PART NO.
Additional Set of Fixed Elements                                AELE-BF
Additional Set of Collapsible Elements                        AELE-BC
Mounting Adapter for Tripod                                        ATA-22MR
Mounting Adapter for Antenna Mast                            AMA-22MR

Product Name: Biconical Antenna
Frequency Range: 25 MHz to 300 MHz
Polarization: Linear
Ant. Symmetry (balance): < 1 dB
Nominal Impedance: 50Ω
Power Handling: 50 Watts (continuous)
Connector: N-type (female)
Antenna Factors: (Please see the graph on the Chart tab)
Isotropic Gain: (Please see the graph on the Chart tab)
VSWR/Return Loss: (Please see the graph on the Chart tab)
Max. Radiated Field: (Please see the graph on the Chart tab)
Test Specifications: FCC, CISPR, EN, ETSI, FAA, MIL-STD 461, Automotive and similar
Dimensions: 51.5” x 20.2” x 28.5” [130.8 x 51.3 x 72.4 cm]
Weight: 4.5 lbs. [2 kg]

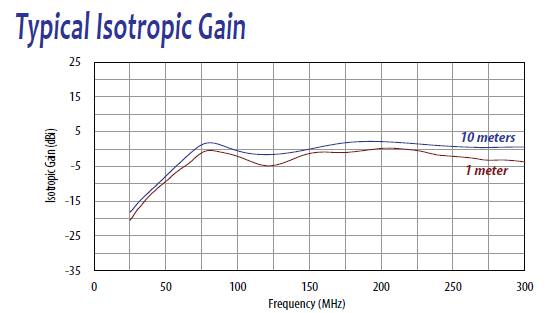

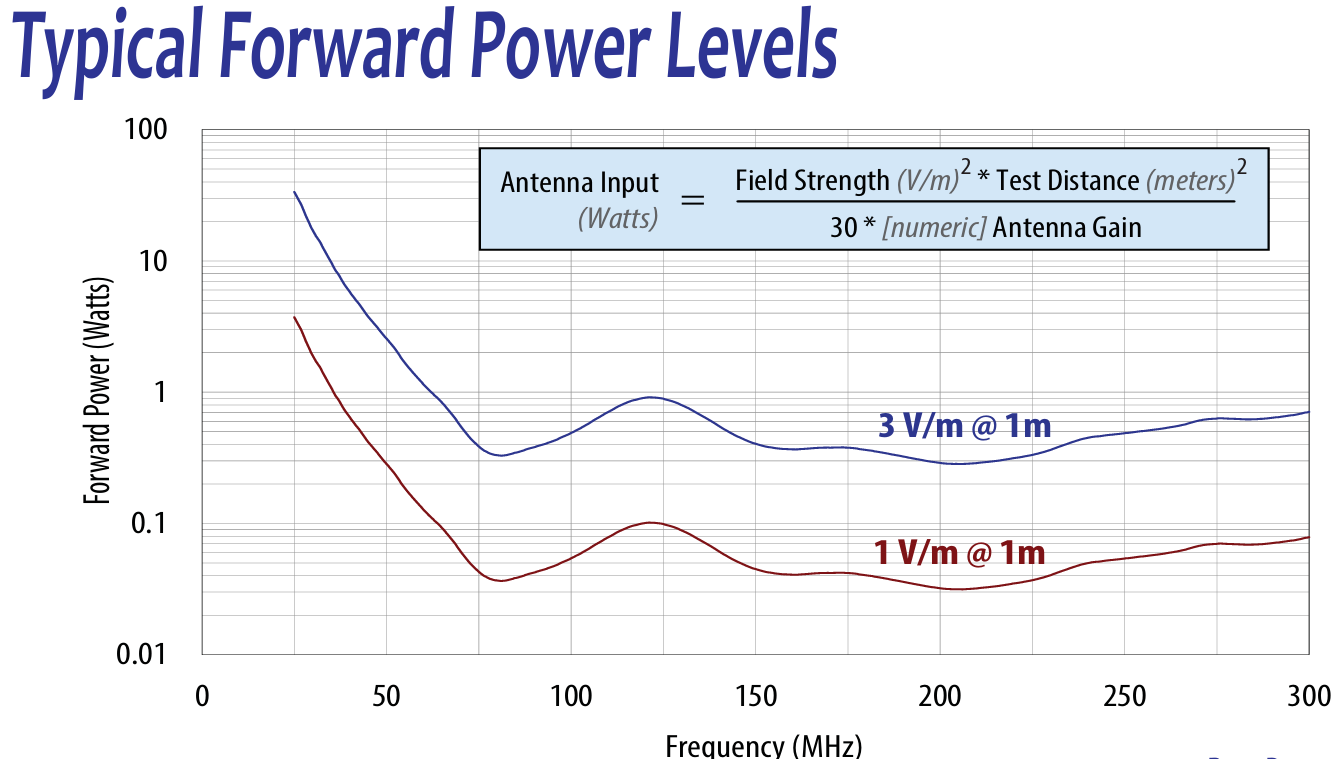

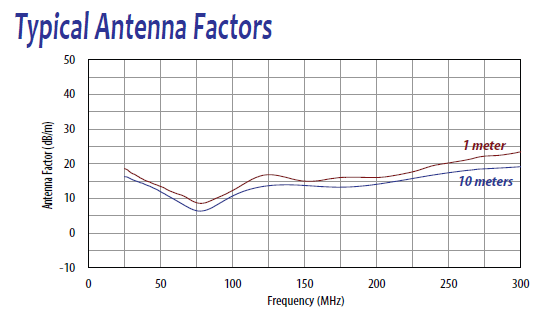

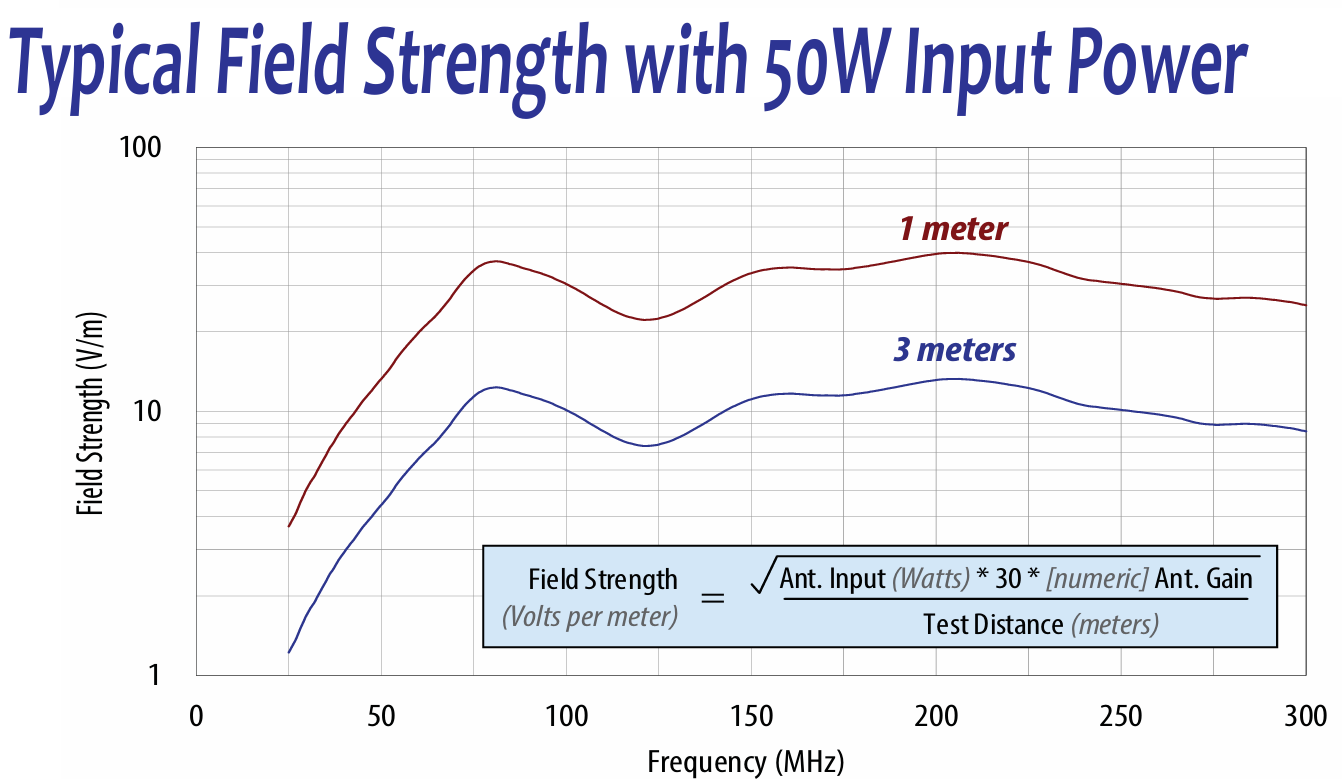

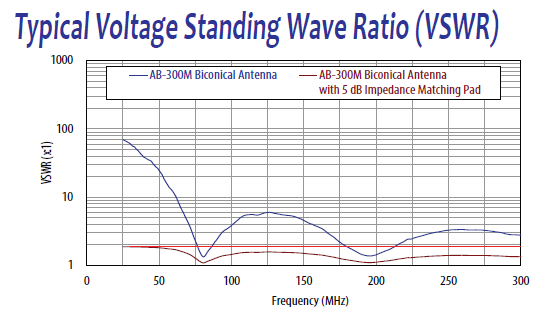

AB-300M Typical Antenna Factors AB-300M Typical Isotropic Gain AB-300M Typical Voltage Standing Wave Ratio (VSWR) AB-300M Typical Return Loss AB-300M Typical Field Strength with 50W Input Power AB-300M Typical Forward Power Levels

Title Link
AB-300M Datasheet View PDF
