CombiLog Hybrid Antenna

ACL-6000

30 MHz to 6 GHz (Emissions), 80 MHz to 6 GHz (Immunity)

The ACL-6000 CombiLog Hybrid Antenna for emissions and immunity tests from 30 MHz to 6 GHz

CombiLog Hybrid Antenna

ACL-6000 CombiLog Antenna:

  • Frequency Range: 30 MHz–6 GHz (emissions), 80 MHz–6 GHz (immunity)

  • Hybrid Design: Combines log periodic and biconical elements

  • Polarization: Linearly polarized with good cross-polarization rejection

  • Calibration: Individually calibrated to ANSI C63.5 with NIST traceability

  • Power Handling: Up to 1200 Watts, depending on frequency

  • Applications: EMI testing, immunity testing, site surveys, shielding tests

  • Compliance: Meets ANSI C63.5 & CISPR 16-1-4 symmetry/balance standards

  • Warranty: 3-year standard warranty

Frequently bought together



•             Wide Frequency Range: 30 MHz to 6 GHz (As Receiving Antenna - Emissions Testing)

                                                            80 MHz to 6 GHz (As Transmitting Antenna – Immunity Testing)

•             Complies with ±1 dB Antenna Symmetry/Balance Requirements of ANSI C63.5 and CISPR 16-1-4

•             Good Cross-Polarization Performance

•             Individual Calibration Included

•             Three-year Standard Warranty

Product Name: CombiLog Hybrid Antenna

Model: ACL-6000

Frequency Range: Wide Frequency Range: 30 MHz to 6 GHz (As Receiving Antenna - Emissions Testing)

                                                            80 MHz to 6 GHz (As Transmitting Antenna – Immunity Testing)

Polarization: Linear

Ant. Symmetry (Balance): < ±1 dB

Nominal Impedance: 50 Ω

Connector: N-type (female)

Specifications: FCC, CISPR, EN, ETSI, etc.

Dimensions (H x W x D): 45.3” x 18.9” x 51.6” [1150 x 480 x 1310 mm]

Weight: 11 lbs. [5 Kg]

Please refer Graphs on next tab for: Antenna Factor, Maximum input Power, Cross Polarization Rejection, Isotropic Gain, and VSWR.

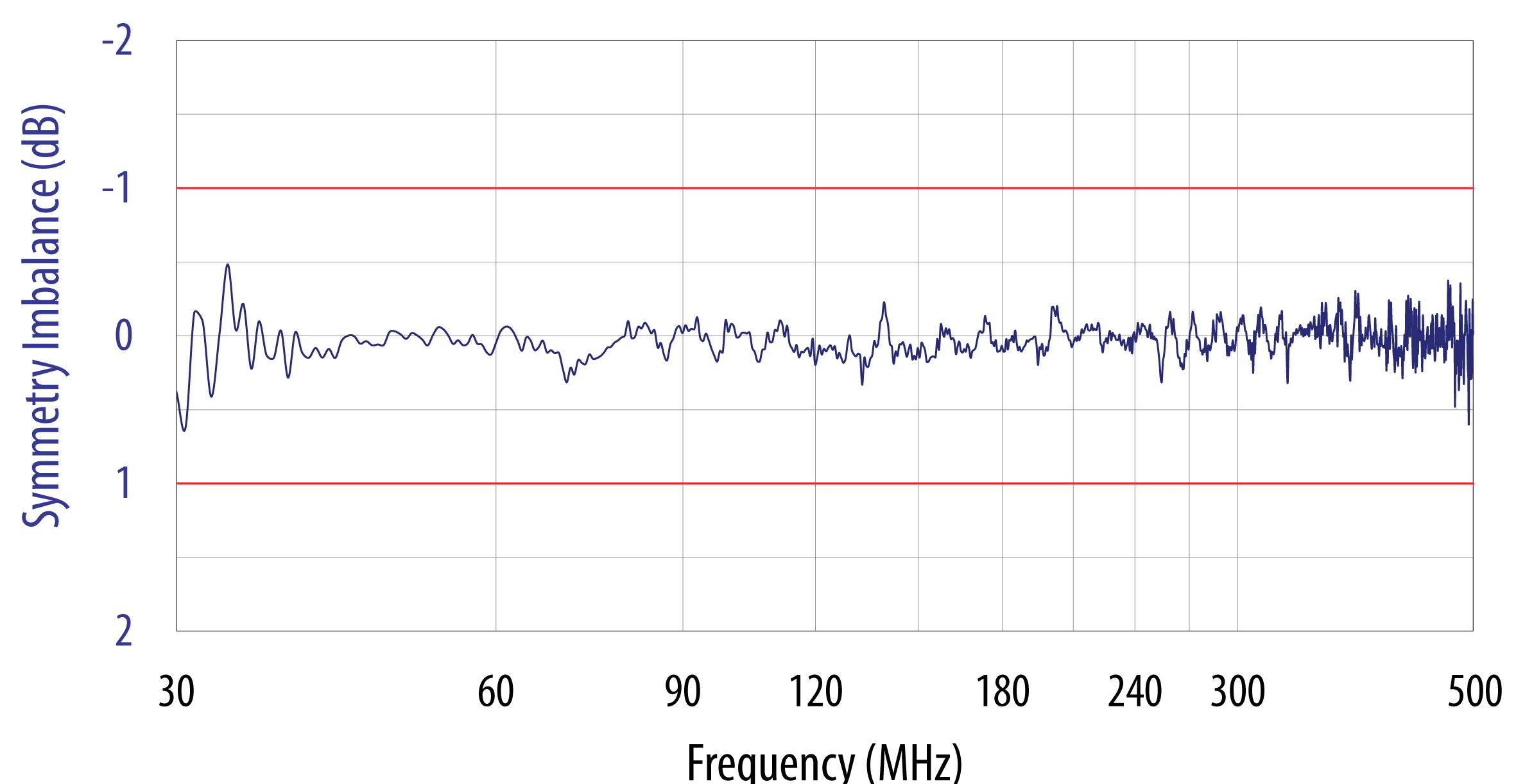

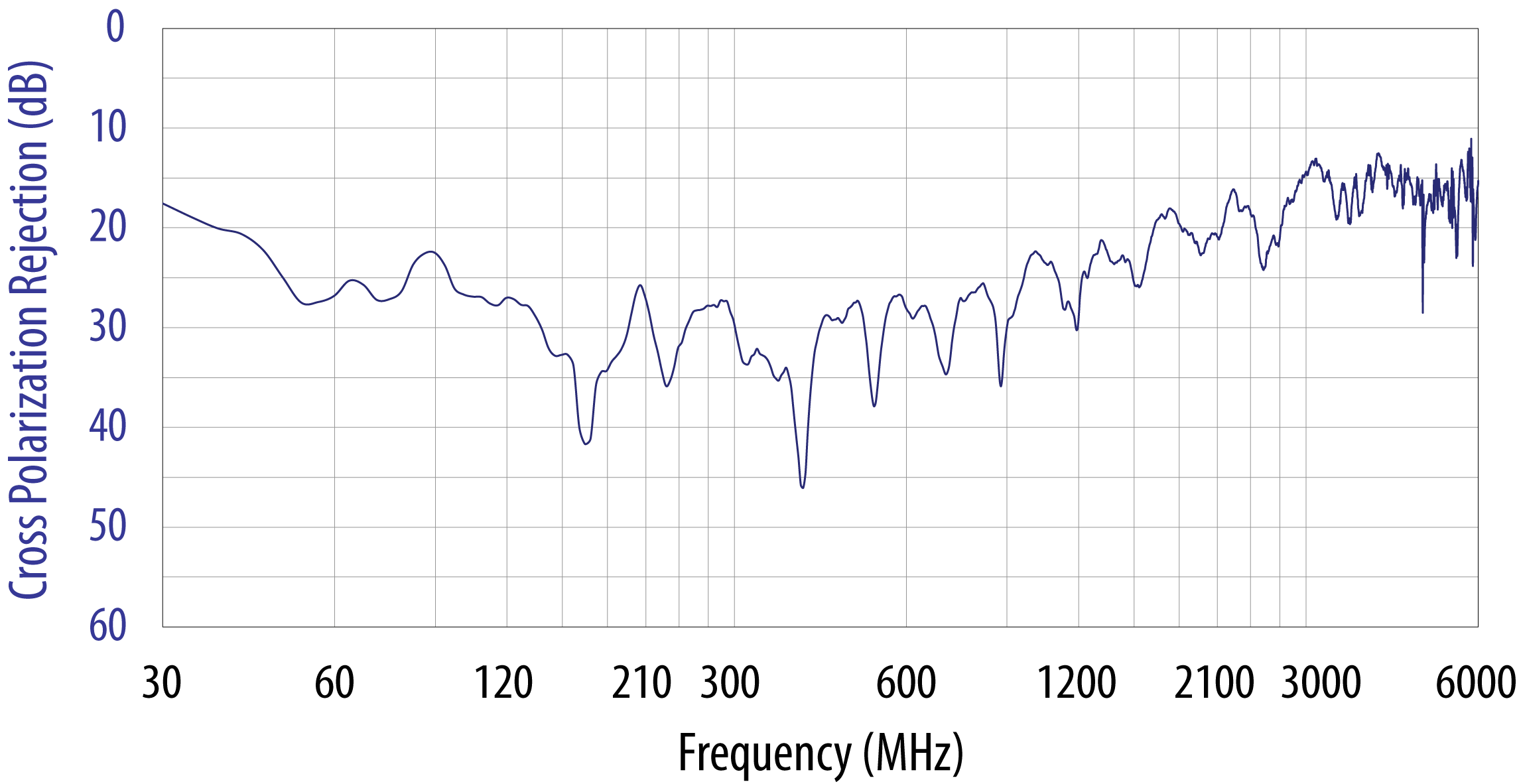

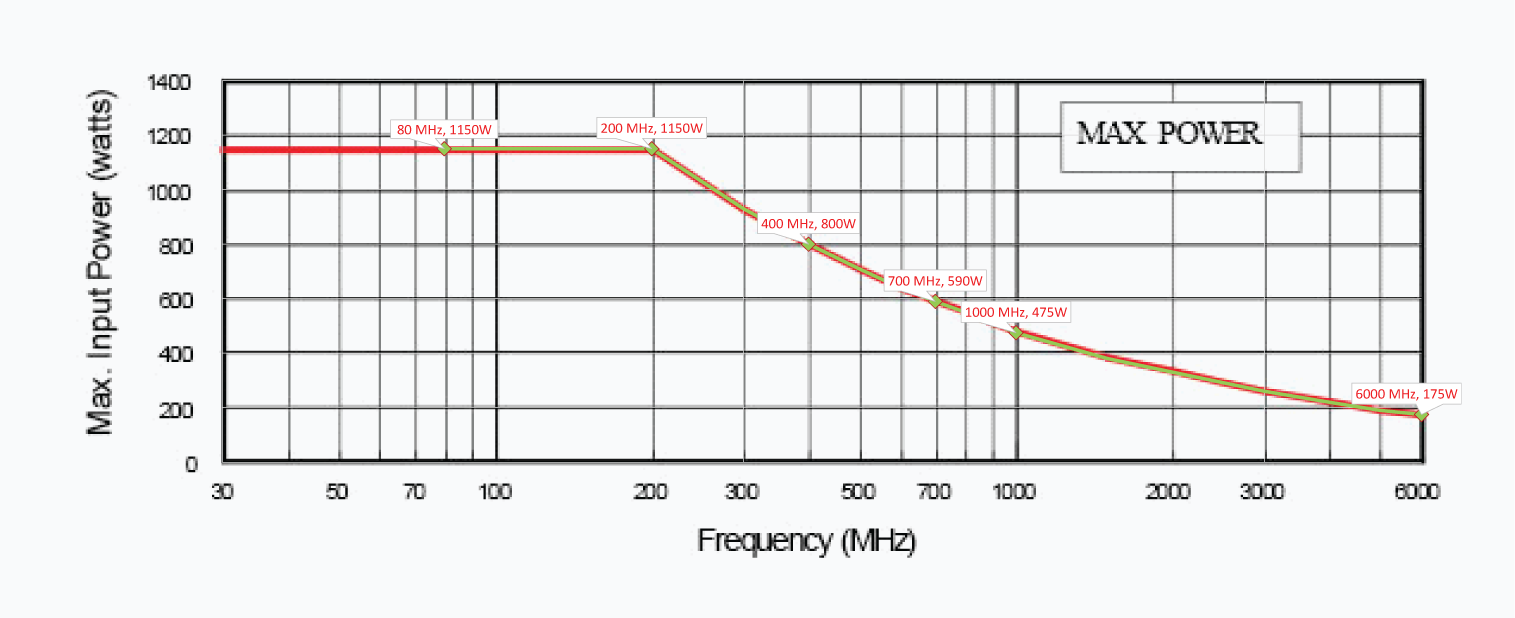

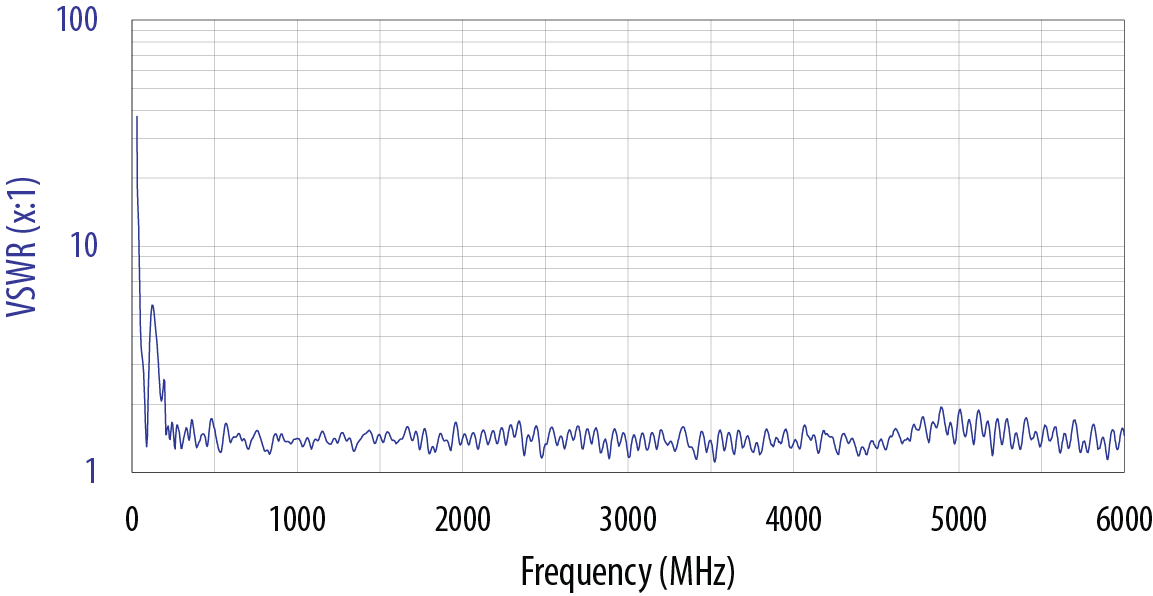

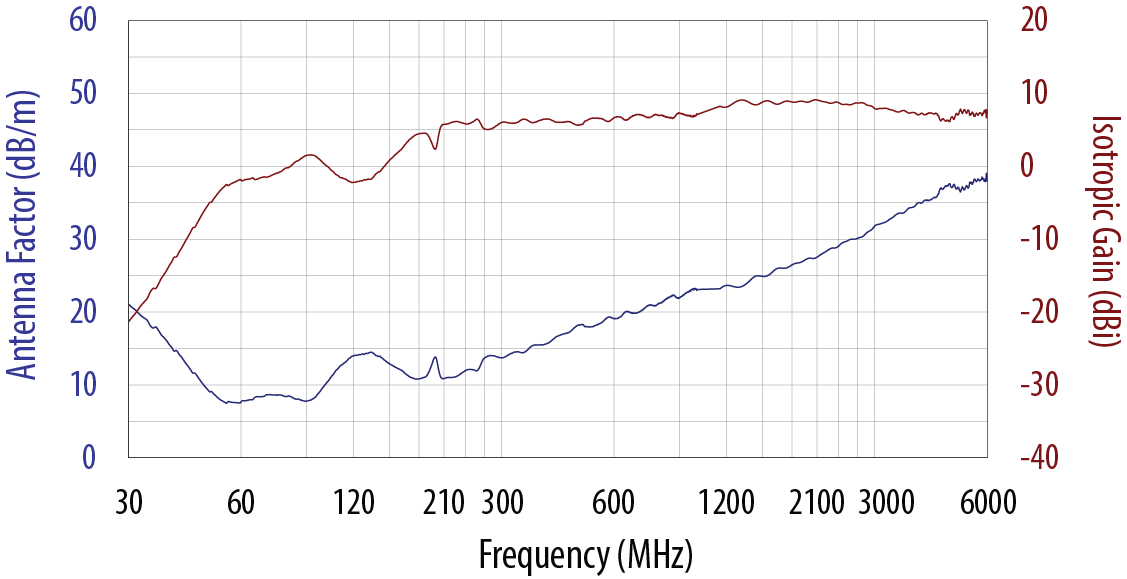

Typical Antenna Factors / Isotropic Gain Typical VSWR Maximum Input Power (Watts) Typical Antenna Symmetry (Balance) Typical Cross-Polarization Rejection
