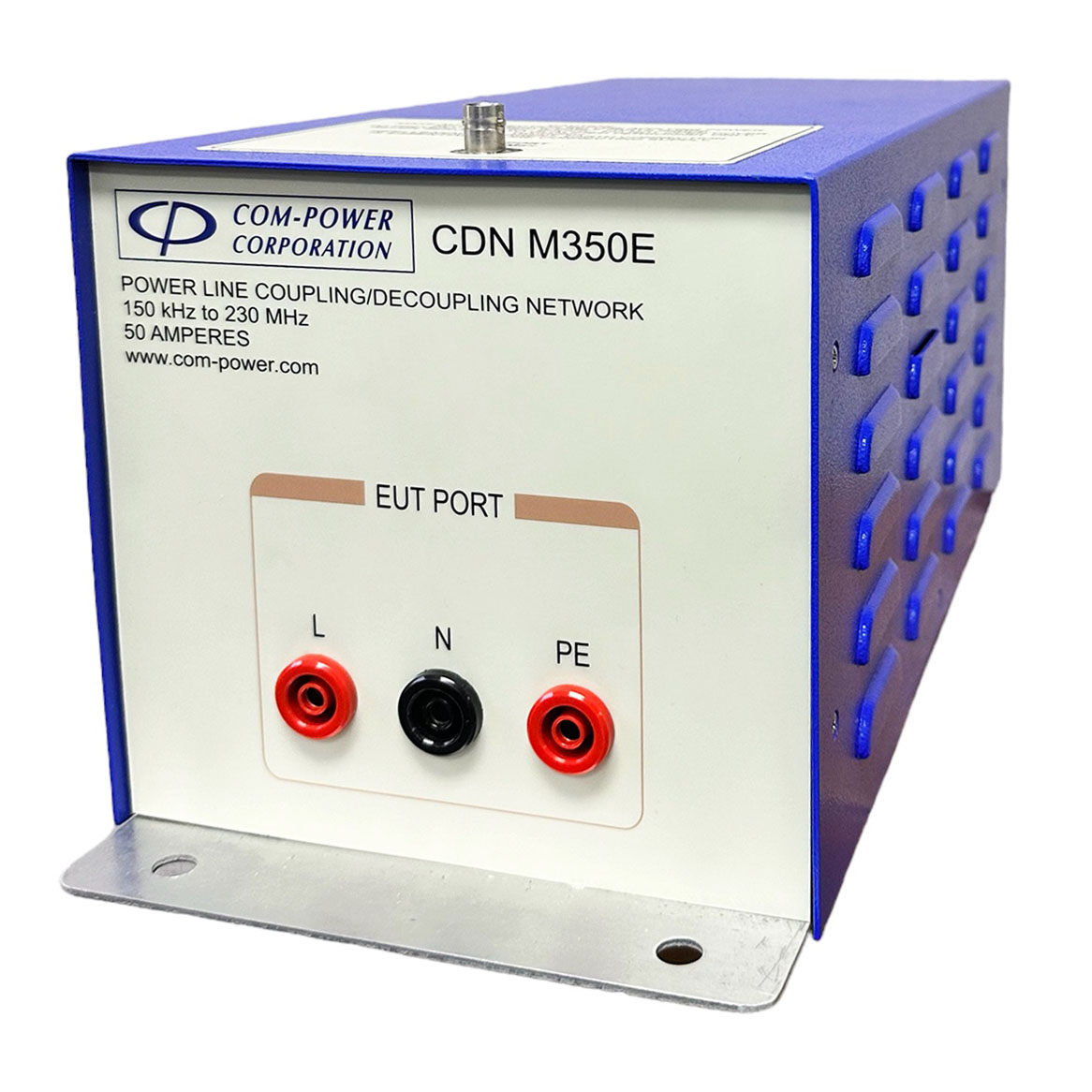

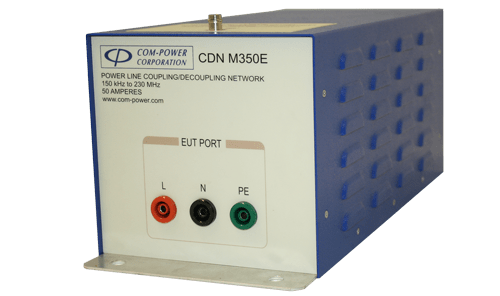

CDN-M350E

150 MHz to 230 MHz

powerline CDN 3 Line 50 Amps

▸ Three-line 50 A single-phase power CDN, 150 kHz–230 MHz — IEC 61000-4-6 conducted immunity for high-current single-phase mains products (L + N + PE) up to 50 A.
▸ 4 mm shrouded banana sockets rated 250 VAC / 350 VDC — doubled current capacity over the CDN-M325E for higher-power single-phase loads.
▸ 150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — full IEC 61000-4-6 coupling profile with 40 V_rms RF input rating.
▸ EV charging equipment (Level 1 / Level 2 single-phase) — AC charging stations and EVSE up to 240 VAC / 50 A on grounded single-phase service per UL 2231 and IEC 61851 supporting immunity work.
▸ Industrial heating and process equipment — resistive heaters, dryers, and process ovens with high single-phase current draw requiring IEC 61000-6-2 testing.
▸ Commercial appliances and food-service equipment — commercial refrigeration, deep fryers, electric ranges, and dishwashers on 240 VAC / 30–50 A circuits.
▸ HVAC compressors and high-current motor loads — air-conditioning condenser units, heat pumps, and large blower motors operating at high single-phase currents.
▸ NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.

CDN-M350E Features

▸ Power-line CDN for Single-phase power connection (L + N + PE) at 50 A — 3 lines configuration designed per IEC 61000-4-6 for conducted RF immunity testing of equipment power supplies
▸ 50 A per line continuous current rating covering 250 VAC / 350 VDC mains operation; 4 mm shrouded banana sockets for safe, repeatable EUT and AE power connections
▸ Frequency range 150 kHz to 230 MHz — covers the entire IEC 61000-4-6 standard band including the optional extended-band test region up to 230 MHz
▸ 150 Ω common-mode impedance profile per IEC 61000-4-6 with 9.5 dB voltage division factor (VDF) for accurate, repeatable test-level setting
▸ 50 Ω BNC (female) RF injection port — direct connection to immunity-test power amplifier output through standard 50 Ω coaxial cable
▸ 40 V_rms maximum RF input — supports test levels of 1, 3, and 10 V_rms per IEC 61000-4-6 with comfortable headroom
▸ High decoupling between EUT and AE ports — prevents auxiliary equipment from being stressed and prevents test signals from feeding back into the building mains
▸ Sturdy aluminum enclosure with carry handle — benchtop and floor-standing operation; ground stud on rear panel for proper reference-plane bonding
▸ NIST-traceable individual calibration with ISO/IEC 17025 accredited calibration available on request; all units shipped with calibration certificate
▸ Compatible with ADA-515-X 150 Ω / 50 Ω calibration adapters for test-level setting per IEC 61000-4-6 setup procedure
▸ Three-year warranty — covers manufacturing and workmanship defects

CDN-M350E Specifications

Parameter	Specification
Model	CDN-M350E
CDN Type / Application	M-Series Power-Line CDN — Single-phase power connection (L + N + PE) at 50 A
Number of Power-Line Conductors	3
Applicable Standards	IEC / EN 61000-4-6, CISPR 16-1-2
Frequency Range	150 kHz to 230 MHz
Max Continuous Current (per line)	50 A
Max Line Voltage (L – G)	250 VAC / 350 VDC
EUT / AE Power Connectors	4 mm shrouded banana sockets
RF Injection Port	50 Ω BNC (female)
Max RF Input Voltage	40 V_rms

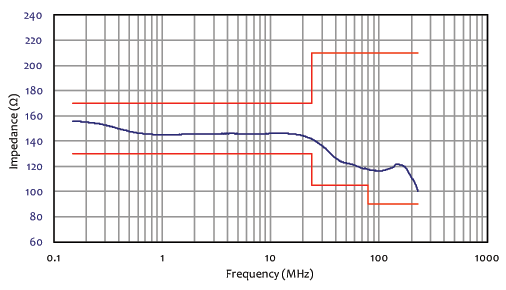

Common-Mode Impedance	150 Ω (IEC 61000-4-6 profile)
Voltage Division Factor (VDF)	9.5 dB (typical, with specified tolerance)
Decoupling (EUT ↔ AE)	High isolation per IEC 61000-4-6
Calibration	NIST-traceable; ISO/IEC 17025 accredited optional
Warranty	3 years

Calibration: Each unit is supplied with NIST-traceable individual calibration data. ISO/IEC 17025 accredited calibration is available on request.
Test-level setup: ADA-515-X 150 Ω to 50 Ω calibration adapters (sold separately) are required for setting IEC 61000-4-6 test levels (typically 1, 3, and 10 V_rms) prior to testing the EUT.

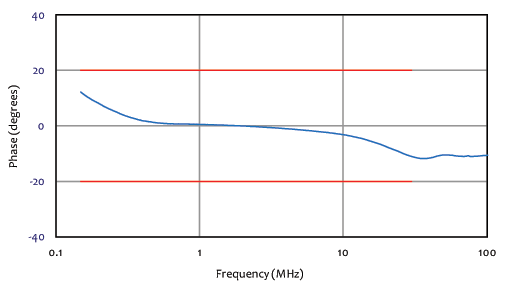

chart chart
