Comb Generator Reference with 1 MHz or 5 MHz Step size

CGO-515

1 MHz to 1.5 GHz

comb generator

Comb Generator Reference with 1 MHz or 5 MHz Step size

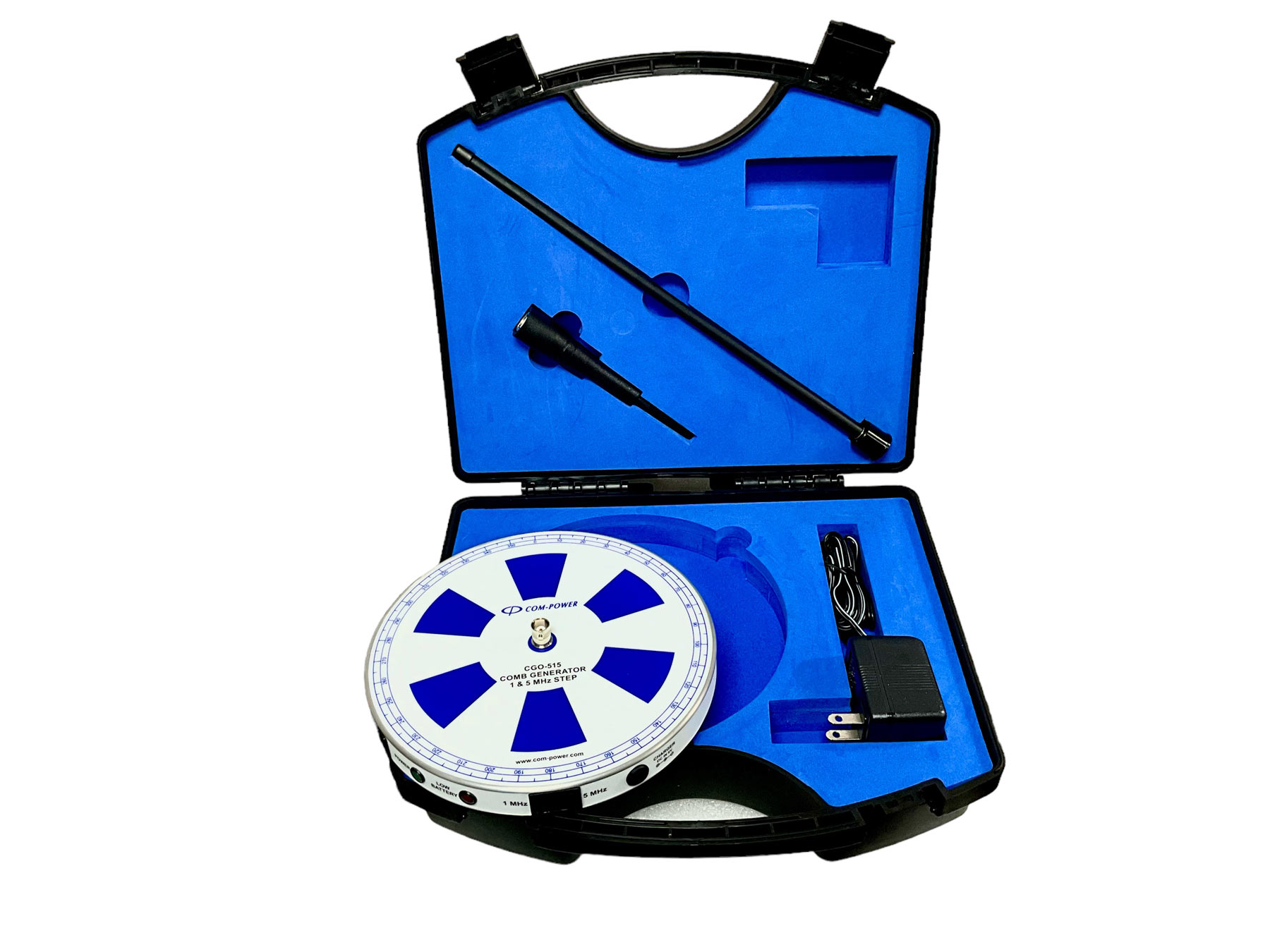

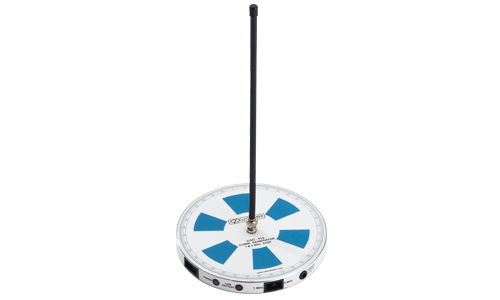

Com-Power CGO-515 Comb Generator is a broadband EMC signal source for quick EMC site testing. It radiate signals up to 1500 MHz at user selectable 1 or 5 MHz frequency steps. EMC labs calibrate their radiated emissions test sites, instrumentation and accessories at least once a year. The calibration procedures are elaborate and time consuming. However, calibration does not prevent equipment malfunction in between calibration period such as damaged receivers,, broken cables, poor connections, bad antenna, etc. Monitoring a few frequencies regularly on the Comb Generator's broadband radiated output can verify the entire setup quickly and efficiently. Any potential problems with the test setup can be detected before it causes erroneous results. It is powered by a rechargeable NimH battery pack. It has circular shape for more uniform radiated output. It is supplied with one detachable antenna, battery charger adapter and custom wooden storage box.



  • Quick, Pre-Test Site Validations
  • Wide Frequency Range  1 MHz to 1.5 GHz
  • Battery Operated - Extended Battery Life  operates >18 hours per charge
  • Automatic    Low-Battery    Voltage    Shut-off
  • User-selectable Output Frequency/Step Size
  • Three-Year Warranty



  • Intended Application: Radiated Reference Signal Source (for OATS, SAC, FAC, etc.)
  • Frequency Range: 1 MHz to 1.5 GHz
  • Frequency Step Size: 1 MHz or 5 MHz (user-selectable)
  • Frequency Stability: 20 ppm Amplitude Stability ± 0.1 dB
  • Time Stability: <1 dB over 12 months
  • Charging Adapter Output: 6 VDC (unregulated), 500 mA
  • Battery Type: 6V NiMH, 1 Ah
  • Battery Operation: >18 Hours Typical (fully-charged battery)
  • External LED Indicators: Battery Low, Power On
  • Antenna Type: (2) Monopoles (5-inch & 12-inch)
  • Generator Dimensions: 7 in. x 1.2 in. (17.8 cm x 3 cm)
  • Weight: 1.5 lbs (0.7 kg)
