Conducted Comb Generator with Step Sizes of 10 and 50 kHz
CGC-105 Comb Generator Overview
• A stable reference signal source for verifying conducted emissions measurement systems.
• Output consists of a fundamental frequency and its harmonics.
• Simulates an EUT generating conducted EMI noise.
• Plugs directly into the LISN’s EUT port.
• High output impedance allows use while the LISN is connected to an external power source or removed from power.
• Conducted output levels are close to or above most CISPR disturbance test limits.
• Powers by rechargeable internal NimH batteries, eliminating the need for external power cabling.
• Provides continuous use for up to 23 hours when fully charged.
• Regular checks using a Conducted Comb Generator can prevent measurement errors between calibration intervals.
• Mainly used to verify conducted emissions measurement systems quickly.
• Connects directly to most LISNs via interchangeable CGC-P25A, CGC-P50A, or CGC-P100A output pins.
• Provides a CGC-105P-ADA-USP adapter for direct connection to the measuring instrument.
Reference Signal Source for LISNs

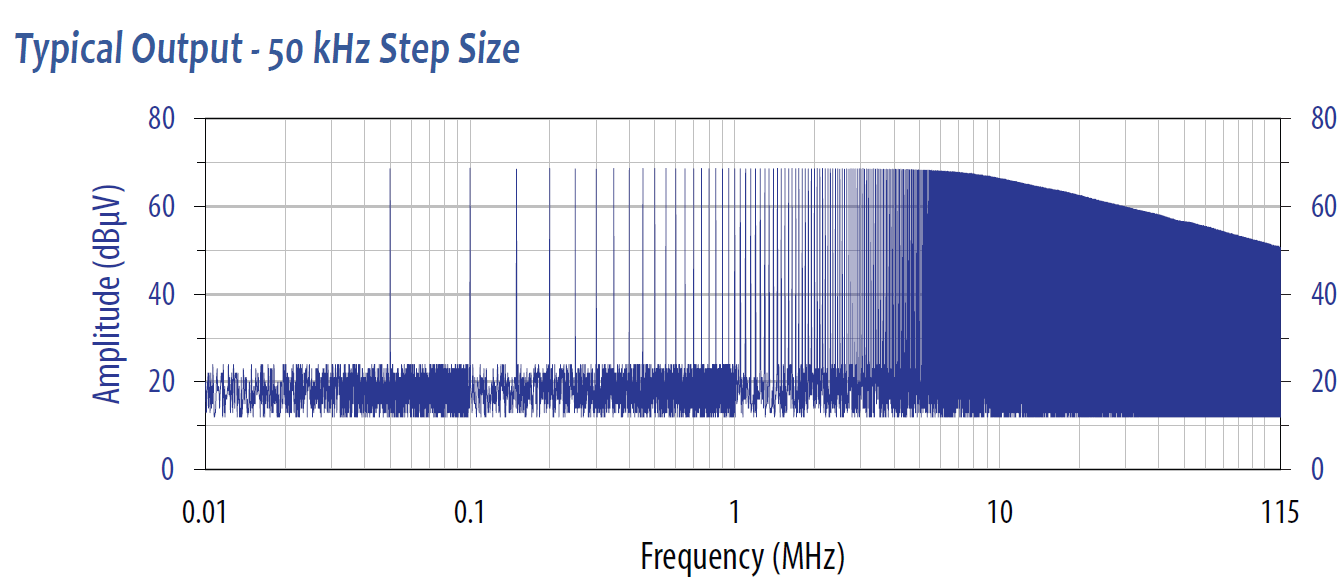

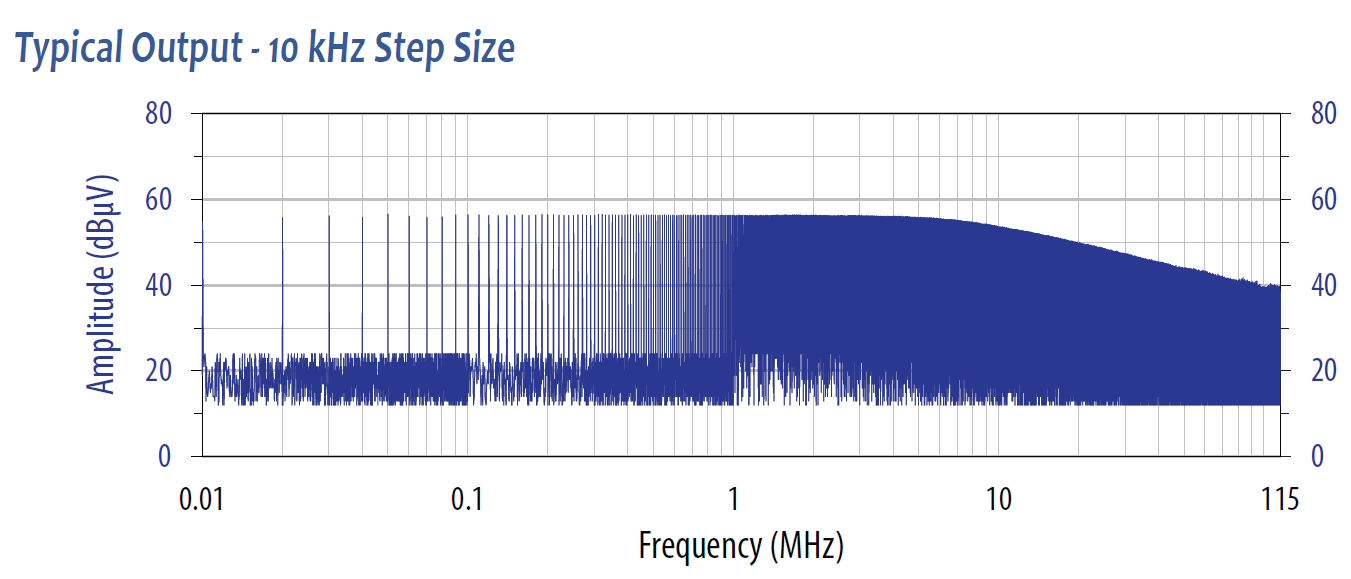

User-Selectable Step Sizes of 10 and 50 kHz
Usable Frequency Range up to 115 MHz
Battery Operated
Three-Year Warranty
Product: Conducted Comb Generator
Model: CGC-105
Frequency Range: 10 kHz to 115 MHz
Frequency Step Size: 10 kHz or 50 kHz (user-selectable)
Frequency Stability: 20 ppm
Amplitude Stability: ± 0.1 dB
Time Stability: <1 dB over 12 months
Charger Output: 6 VDC (unregulated), 500 mA
Battery Type: 6V NiMH, 1 Ah
Typical Operating Time: >23 Hours (with fully charged battery)
External Indicators: Battery Low and Power On
Dimensions (L x W x H): 6.5 x 2.3 x 2.4 inches / 165 x 58 x 61 mm
Weight: 0.5 lbs / 0.22 kg

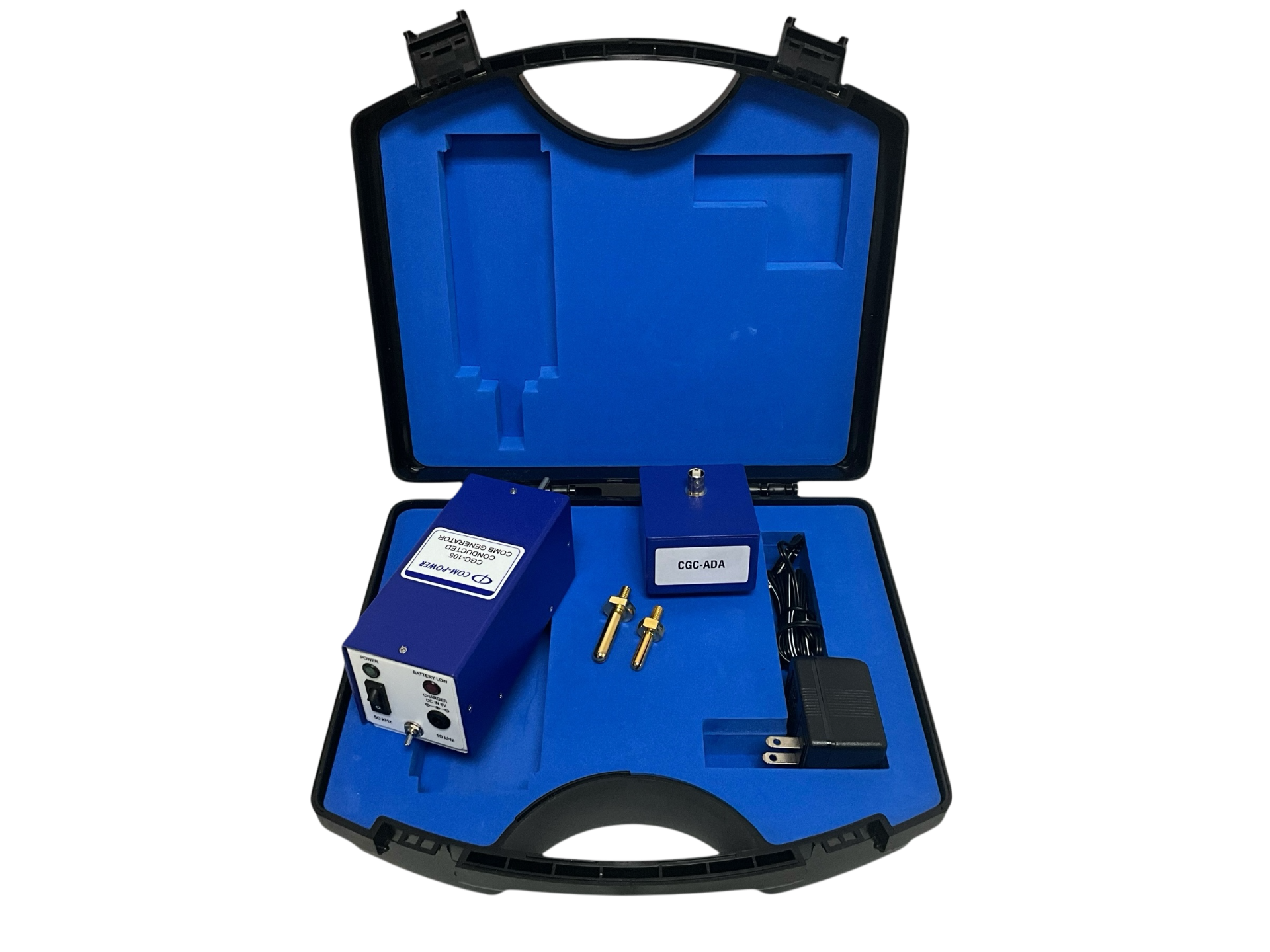

Accessory Output Adapters: CGC-P25A, CGC-P50A, CGC-P100A, CGC-105P-ADA-CAL, CGC-105P-ADA-USP
