225 Watts Power Amplifier: DC -300 KHz

(855) 364-2362

ARI-101A

DC to 300 kHz

power amplifier

225 Watts Power Amplifier: DC -300 KHz

DC to 300 kHz Power Amplifier 225 Watts

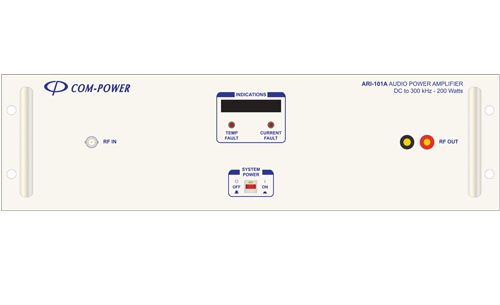

The Com-Power ARI-101A Audio Power Amplifier is specifically geared for conducted and radiated susceptibility testing such as that described in MIL-STD-461 (CS101 & RS101) and RTCA DO-160 (Section 18), in addition to other standards.
The ARI-101A operates from DC to 300 kHz with an output power up to 200 Watts (into 2 ohms) and 225 Watts (into 1 ohm).

  • Frequency Range: DC to 300 kHz
  • 200 Watts Power into 2 ohms - 225 Watts Power into 1 ohm
  • Protection Circuitry from Input Overload, Over-Temperature & Over-Current
  • Three-Year Warranty

General

  • Products Description: Audio Power Amplifier
  • Application: Audio Frequency Susceptibility Testing
  • Standards: MIL-STD-461, RTCA DO-160, etc.
  • Frequency Range: DC to 300 kHz
  • Output Power: 200 Watts (into 2Ω), 225 Watts (into 1Ω)
  • Input Signal: 0 dBm (maximum)
  • Input Impedance: 50 ohms (nominal)
  • Output Impedance: 1 ohm, 2 ohms
  • Output Voltage: >10 Vrms (DC to 150 kHz with 0 dBm input)
  • Distortion: ≤0.3%
  • DC Drift: < ±1.5 mV (after 30 minutes of operation)
  • Phase Response: ±5 degrees
  • Residual Noise: 300 µV
  • Signal-to-Noise Ratio: -100 dB
  • Gain Linearity: 0.15%
  • Common Mode Rejection: -60 dB

Electrical

  • AC Input Power: 115/230 Volts AC, 50/60 Hz

Input/Output Connectors

  • Input Connector: BNC (female)
  • Output Connectors: (2) x 4 mm Banana Jack Binding Posts
  • AC Power Input Connector: IEC C13 Receptacle

Eviromental

  • Operating Temperature: 40º F to 104º F (5º C to 40º C)
  • Cooling: Forced Air

Mechanical

  • Dimensions(HxWxD): 5.2” x 19” x 15.7” (131 mm x 482 mm x 398 mm)
  • Cooling: Forced Air

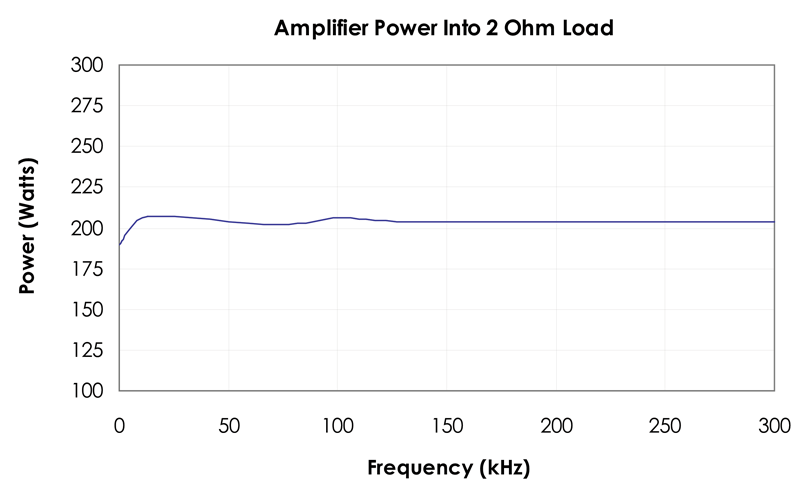

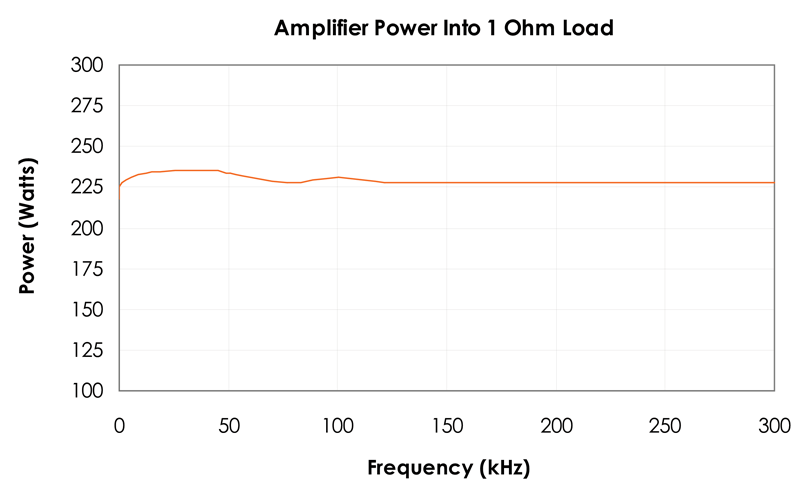

chart chart
