Current Probe for Emissions Measurement

(855) 364-2362

CLCE-400 (32 mm Aperture)

10 kHz - 400 MHz

current probe

Current Probe for Emissions Measurement

CISPR, MIL-STD 461, DO-160 The CLCE-400 RF Current Probe is part of Com-Power's extensive line of radio frequency conducted emission/ immunity test equipment and calibration accessories. The CLCE-400 is suitable for compliance measurements required by CISPR 22, CISPR 32, DO-160, MIL-STD-461, etc, as well as for applied current monitoring during conducted immunity tests. Its design incorporates a split-core ferrite in a rugged, circular hinged enclosure; thereby allowing the probe to be opened on one side in order to easily place the wire(s), cable(s) or cable bundle(s) to be tested into the probe window, making the CLCE-400 much more convenient to use than other non-split core probes. The CLCE-400 is designed to be used in conjunction with a spectrum analyzer or EMI receiver or any 50? impedance measurement equipment, which measure magnitude quantities in terms of true rms voltage.

  • Frequency Range: 10 kHz to 400 MHz
  • Suitable for CISPR, Mil-Std 461 & DO-160
  • Individual calibration
  • Three-year warranty



  • Frequency Range: 10 kHz to 400 MHz
  • Window (Aperture) Inside Diameter: 1.25" (32 mm)
  • Outside Diameter: 2.83" (72 mm)
  • Height: 0.76" (19.3 mm)
  • Weight: 0.275 lbs. (0.125 kg)
  • Connector: Type-N (Female)
  • Transfer impedance (ZtΩ): 7Ω*
  • Transfer impedance (dBΩ): -25 to 19 dBΩ (typical)*
  • Max Primary Current (DC-400 Hz): 100 Amps
  • Max Primary Current (RF): 4 Amps
  • Max. Core Temperature: 248℃F (120°C)
  • Related Accessories Available from Com-Power:
    • FCLCE-1000 Calibration Fixture
    • TEP-050 50Ω Terminator
    • SPA-815TGE Spectrum Analyzer

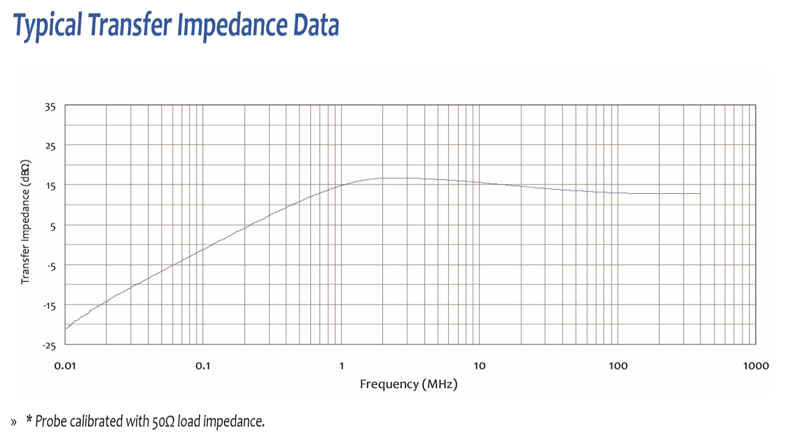

chart
