Conducted Immunity Test - 25 Watts
- 25 Watts Conducted Immunity System (CIS) to Test According to IEC 61000-4-6. CIS-25 is capable of generating power upto 25 watts.
- The CIS series test systems are configured to perform conducted immunity testing according to IEC 61000-4-6.
- The system includes ACS series power amplifier, Coupling Decoupling Network (CDN), directional couplers, attenuators, cables and CSAT software (CSAT software optional at addtional cost).
- These systems when properly configured are capable of testing your products to the all levels given in IEC 61000-4-6 up to 230 MHz.
- The IEC-61000-4-6 requires that an appropriate a coupling decoupling networks (CDN) with defined common mode impedance is used for testing conducted immunity.
- Com-Power has a wide variety of CDNs. The system can be customized include the CDNs to fit your application at the time of purchase.
- Before you begin testing with the CDN you will need to establish a calibrated drive levels corresponding to the test levels.
- When used with compatible signal generator and spectrum analyzer, the CSAT software can fully automate this calibration and also perform the test.
- Com-Power CDNs are calibrated to meet the latest CISPR 16 test standards.
- For IEC 61000-4-6 Testing
- RF Power Amplifiers
- Wide Selection of CDNs
- Software Automation
- Directional Couplers
- Attenuators

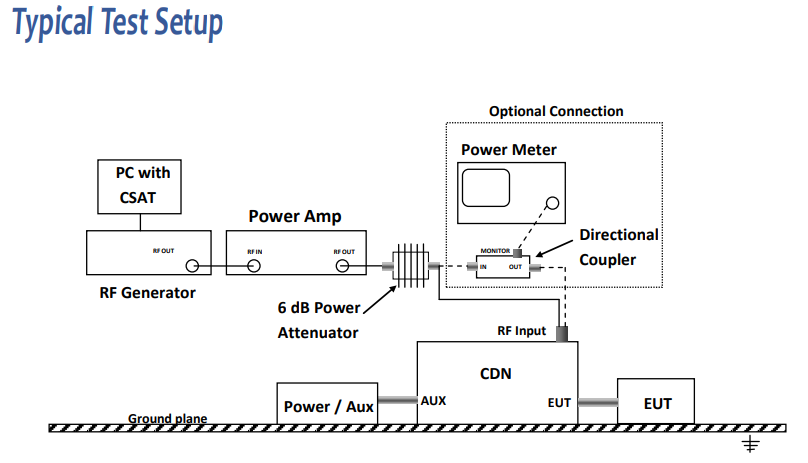

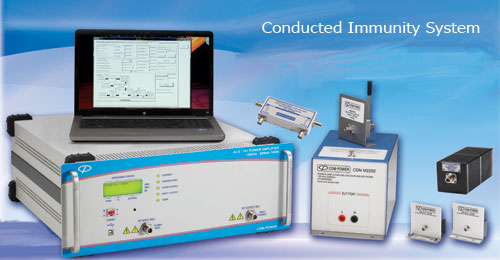

This system Includes:
- ACS-230-25W Power Amplifier
- CDNs (to be determined at the time of purchase)
- ATTN-6-100W
- ATTN-30-100W
- DCU-1000-100W
- Cable set
- Appropriate CDN shorting adapters
- ADA-515 150 Ohm to 50 Ohm adapters
- 50 Ohm terminator
COSAT/CSAT Software (optional) at additional cost.
