LISN 50 Amps for CISPR 16 & ANSI C63.4

LI-150C

150 kHz to 30 MHz | CISPR 16-1-2 / ANSI C63.4 | 50 microhenry | 50 Amps

The LI-150C LISN enables precise conducted emission testing from 150 kHz to 30 MHz

LISN 50 Amps for CISPR 16 & ANSI C63.4

LI-150C: LISN equipped with 50μH inductor, used for FCC, CISPR, EN, and ANSI for the frequency range 150 kHz – 30 MHz

  • Operates over a frequency range of 150 kHz to 30 MHz

  • Fully compliant with CISPR 16-1-2 and ANSI C63.4 standards

  • Uses air-core inductors to prevent saturation and variability

  • Includes individual calibration and three-year warranty

📋 Description

  • The LI-150C is a Line Impedance Stabilization Network (LISN) used for accurate, repeatable power line conducted emissions compliance testing.

  • Provides stable, defined impedance and isolates the Equipment Under Test (EUT) from power source noise.

  • Suitable for single-phase, dual-phase, or DC systems; supports 3-phase setups with a second unit pair.

  • Constructed with high leakage-current handling and earth-ground connection features.

⚙️ Construction & Design

  • Includes separately housed single-conductor networks

  • Comes with color-coded SUPERCON® shrouded sockets and matching plugs

  • Unpainted mounting plate enhances grounding; built for lab or industrial use

🛡️ Protection & Calibration

  • Transient Limiter recommended for protecting instruments and reducing out-of-band emissions

  • Individually calibrated to CISPR 16-1-2 and ANSI C63.4 with complete impedance, isolation, and insertion loss data provided

Frequently bought together

50 Amp 50 Microhenry LISN Features:

  • Frequency range of 150 kHz to 30 MHz
  • Fully compliant with CISPR 16-1-2 / ANSI C63.4
  • “Air-core” inductors to prevent saturation
  • Individual Calibration Included
  • Three-Year Warranty

Specifications:

  • For CISPR 16-1-2 / ANSI C63.4
  • Application: Power Line conducted emission tests
  • Frequency Range: 150KHz - 30 MHz
  • RF Connector: 50 Ohms N-type (female)
  • Current Rating: 50 Ampere AC, 35 Ampere DC
  • Voltage Rating: 270 VAC (Line to Ground), 380 VDC
  • Inductors: 50 microhenry (air-core)
  • Mains & EUT Connections: Superior Electric SUPERCON shrouded sockets
  • Dimensions (each network): 15 x 10 x 10 inches / 38 x 25.4 x 25.4 cm
  • Weight (each network): 14 lbs. / 6.3 kg
  • Insertion Loss: <0.5 dB (150 kHz - 30 MHz)
  • Isolation: > 40 dB (150 kHz - 30 MHz)

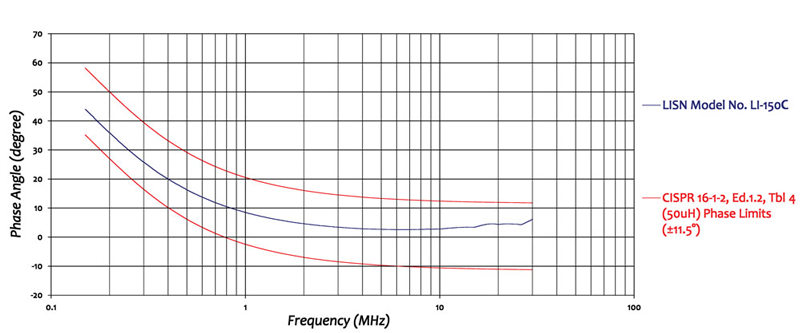

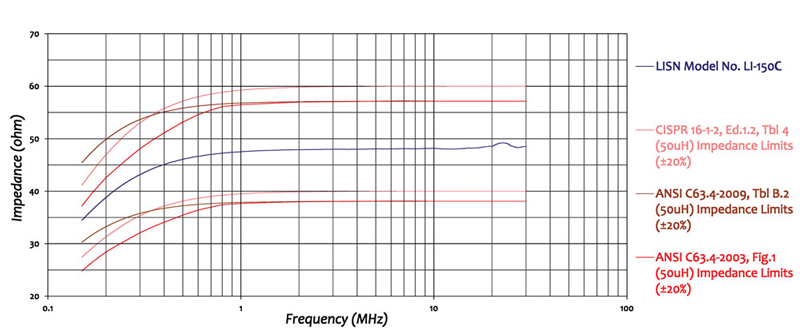

chart chart
