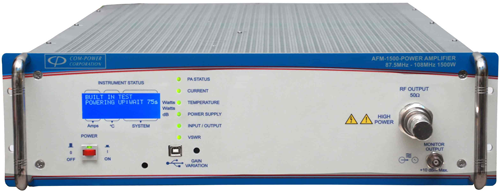

A part of Com-Power's series of RF amplifiers, specifically geared for FM Broadcasting. The AFM-1500 model is a Wideband MOSFET amplifier, engineered to provide excellent operational efficiency and reliability. It has 1500 Watts nominal power output. The AFM-1500 is compatible with BEL (type HVB/HVM 164A, HVM 165A) or GCEL (type 131/136) 2x3 kW /2x5 kW FM Radio Transmitters. The phase and gain of the power amplifiers are matched to use them for high power FM Transmitters, i.e. two amplifiers output can be combined for 3 kW transmitters or four amplifiers for 5 kW transmitters.

  • 87.5 MHz - 108 MHz
  • 1500 Watts
  • 3 years warranty
  • CPAAT
  • CPAS
  • USB Interface
  • Frequency Range: 87.5 kHz to 108 MHz
  • Rated Power Output: 1500 watts
  • Input for rated output: 2.5 Watts (max)
  • RF Checkpoint at output: 0.707 Vrms (+10 dBm max.)

Input:

  • Impedance 50 ohms (nominal)
  • VSWR: 1.2:1 (maximum)
  • Input Signal Modulation Compatibility: FM
  • Connector: Type BNC on Rear Panel

Output:

  • Impedance: 50 ohms (nominal)
  • VSWR: 1.2:1 (maximum)
  • Harmonic distortion: 65 dBc (min) at 1500 watts
  • Mismatch Tolerance: Automatic Safety Shut-off @ VSWR >1.8
  • Connector: Type 7/16” on front panel

Power:

  • Power Amplifier Supply: 27 VDC, 100 A (external)
  • Controller Supply: +/- 12 VDC, 1 A (external)
  • Power Consumption: 2200 Watts (max)
  • Efficiency: 68% (min)
  • Display and Interfaces: USB Remote Interface
  • Front Panel Display (Column 1): Individual Modules current measurement data
  • Front Panel Display (Column 2): Individual Modules temperature measurement data
  • Front Panel Display (Column 3): Load VSWR, RF Power Input/Output, Gain

Mechanical:

  • Cooling: Forced air (self-contained fans)
  • Size: 19” Rack 3U
  • Weight: 75 lbs (34 kg)
  • Operating Temperature Range: 0° C to 30° C
