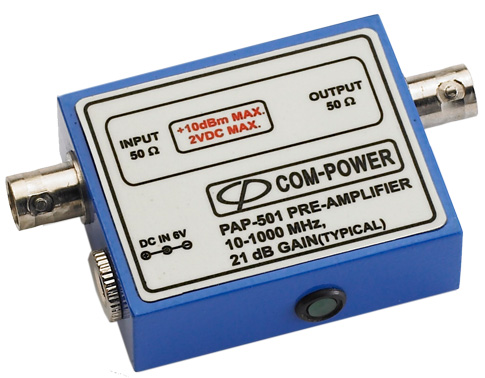

Preamplifier for Sniffer Probes
Intended for improving system sensitivity Model PAP-010 Preamplifier is used with near field probes. It has a frequency range of 10 to 1000 MHz. It is compact in size and is powered by external DC adapter.
- Small Form Factor
- Extremly Portable
- Perfect Preamp for Near Field Probe Sets
- Frequency: 10 MHz - 1000 MHz
- Application: EMI / EMC Measurements

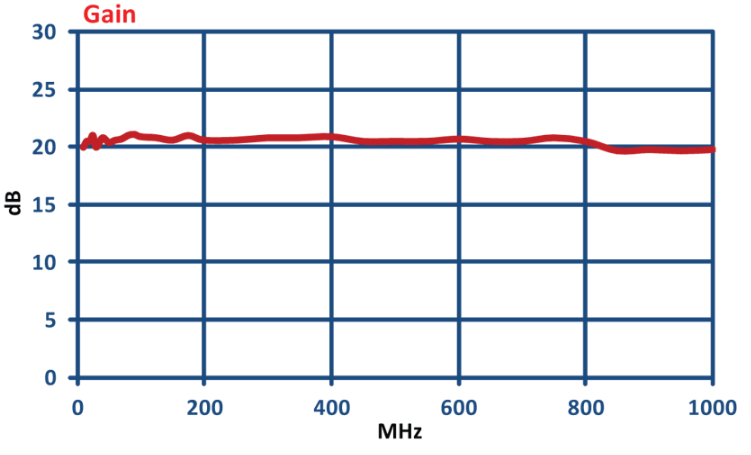

- Gain: 21 dB
- Gain Flatness: ± 2 dB
- PIdB: +10 dBm
- Max Input: 2 VDC, +10 dBm
- Impedance: 50 Ohms
- Connector Type: BNC
- Power: 6 VDC, 0.5 A
- Size: 83 x 42 x 25 mm (3.27 " x 1.65" x 0.985")
- Weight: 1 lb. (0.45 kg)
Quote Request
