Surge Generator for IEC 61000-4-5 Testing

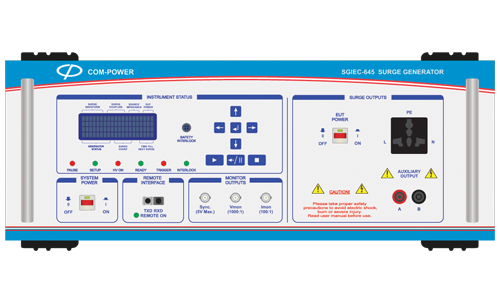

The SGIEC-645 is a state of the art, compliance level Surge Generator designed for IEC 61000-4-5 surge immunity testing. It is capable of generating both the 1.2/50, 8/20
- Compliant with IEC 61000-4-5 Surge Waveform Requirements

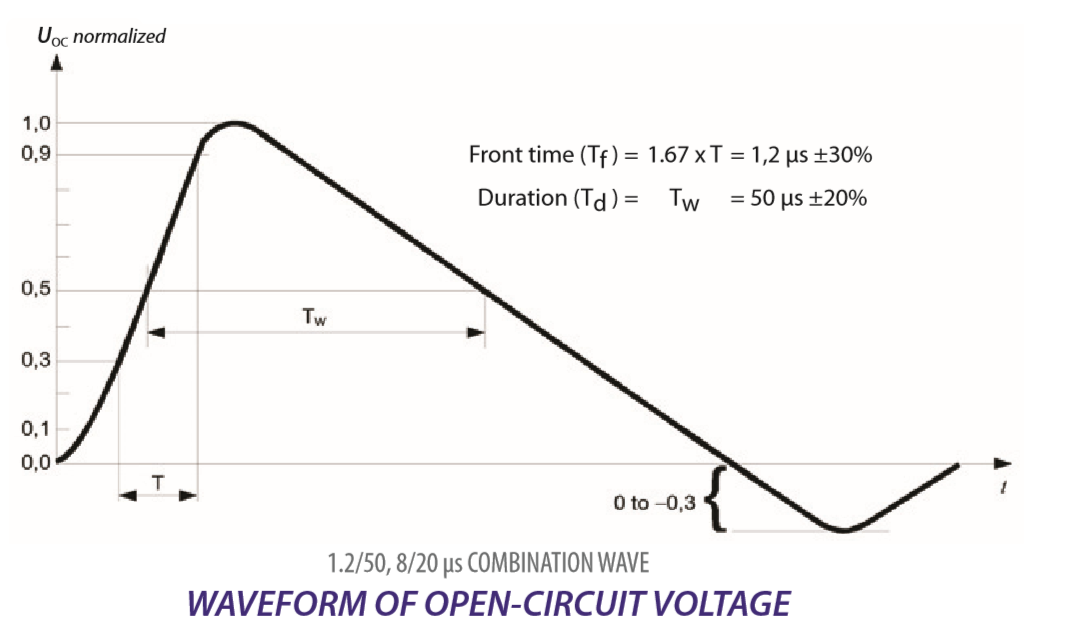

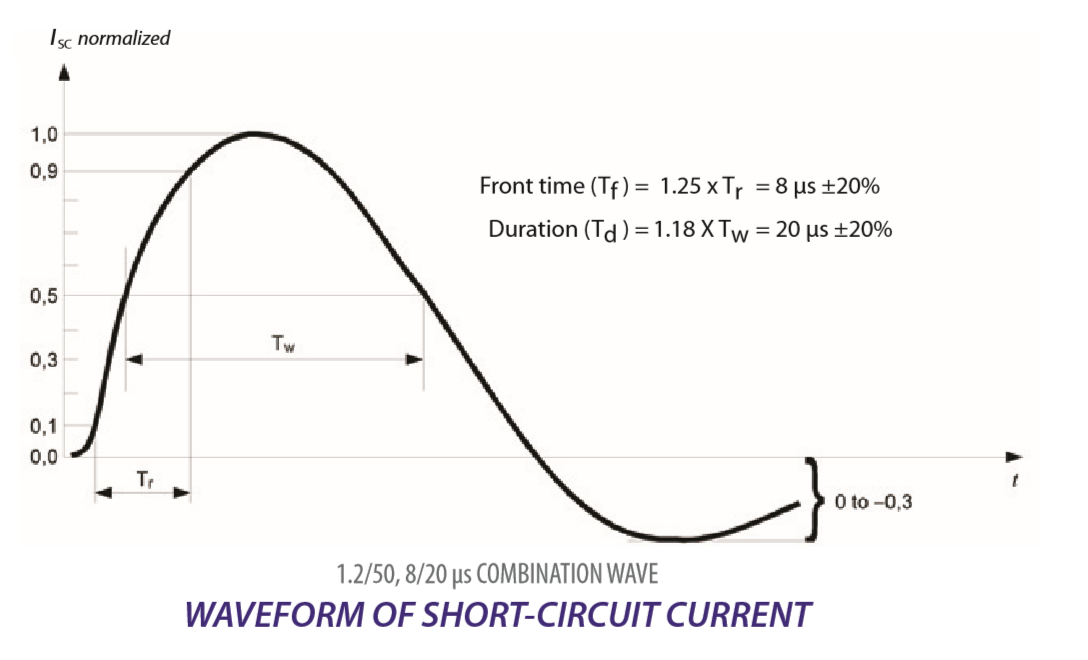

→1.2/50, 8/20 µs Combination Wave

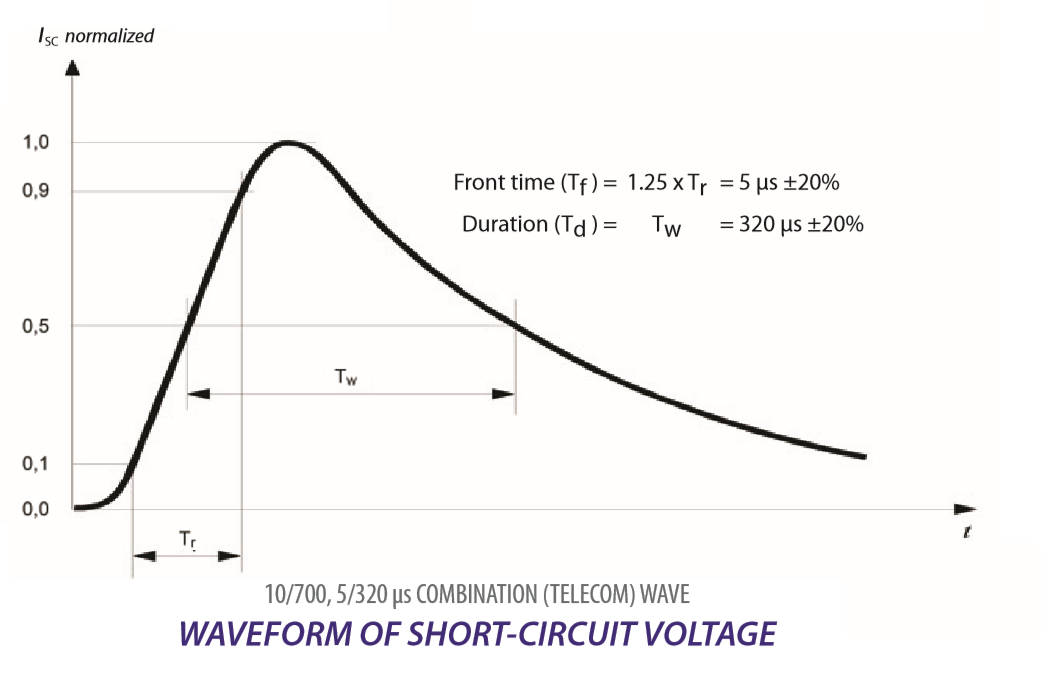

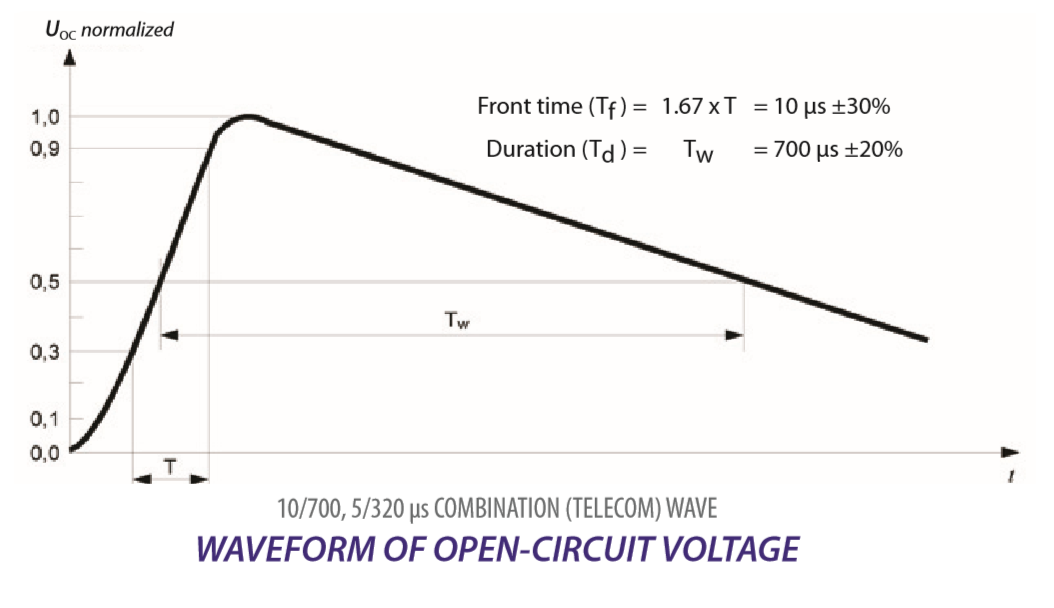

→10/700, 5/320 µs Combination (Telecom) Wave - Can be operated via front panel interface or \ remote PC through fiber optic interface with TransWare-645 software
- Voltage (1000x1) and Current (100x1) Monitor Ports located on front panel.
- Internal Power Line CDN (up to 16 Amps AC)
- External Power Line CDNs Available with AC current ratings up to 100 Amps
- Three-Year Warranty
Specifications for SGIEC-645 Surge Generator
Quote Request
